05001-04N

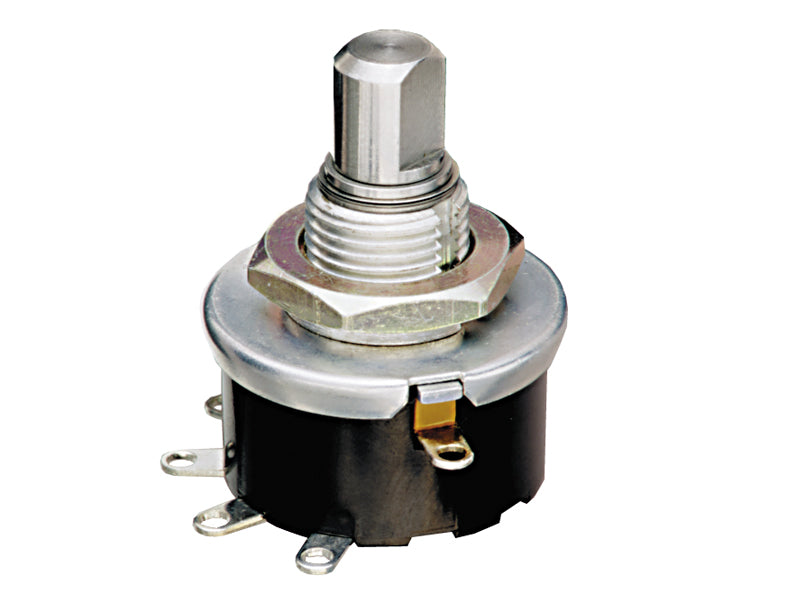

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: SWITCH ROTARY 4POS 1A 115V
- Manufacturer: Grayhill
- Length: 0 mm
- Series: 5000
- Product Status: Active
- Mounting Type: Panel Mount
- Current Rating (Amps): 1A (AC/DC)
- Voltage Rating - AC: 115 V
- Voltage Rating - DC: 28 V
- Actuator Type: Flatted (6.35mm Dia)
- Actuator Length: 7.92mm
- Termination Style: Solder Lug
- Features: -
- Contact Timing: Non-Shorting (BBM)
- Contact Material: Phosphor Bronze
- Contact Finish: Silver
- Number of Positions: 4
- Index Stops: Fixed
- Number of Decks: 1
- Number of Poles per Deck: 1
- Circuit per Deck: SP4T
- Angle of Throw: 36°
- Depth Behind Panel: 12.45mm
-
- Datasheet: BRVN-05001-04N
