104B

  • BRVN:
    BRVN-104B
  • MPN:
    104B
  • MFR:
  • Description:
    Audio transformer, potted, primary 150ohms , secondary 80000 ohms
104B

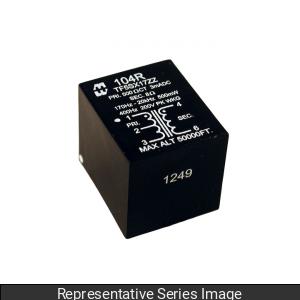

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.

  • Description: Audio transformer, potted, primary 150ohms , secondary 80000 ohms
  • Manufacturer: Hammond Manufacturing
  • Length: 0 mm
  • Series: 104
  • Primary Nominal Impedance (ohms): 150
  • Secondary Nominal Impedance (ohms): 80000
  • Max Primary D.C. ma.: 0
  • Primary DCR (Ohms) +/- 15%: 6.6
  • Secondary DCR (Ohms) +/- 15%: 3730
  • Output Milliwatts: 5
  • Insertion Loss (dB): 1
  • Low Frequency Roll Off -1dB (Hz): 60
  • RoHS: ROHS Compliant
  • ECCN: EAR99
  • HTSUS: 8504.31.4035
  • Country_of_Origin: CA
  • USMCA_Compliant: Yes
  • REACH_Compliant: Yes
  • UPC: 623980612072
  • UNSPSC: 39121017
  • GTIN-14: 00623980179704
