106H

  • BRVN:
    BRVN-106H
  • MPN:
    106H
  • MFR:
  • Description:
    Audio transformer, potted, primary 4000ohms , secondary 2600 CT ohms
106H

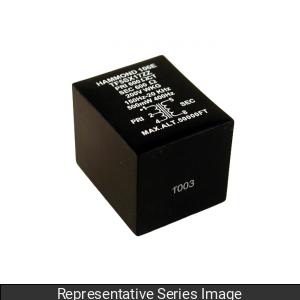

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.

  • Description: Audio transformer, potted, primary 4000ohms , secondary 2600 CT ohms
  • Manufacturer: Hammond Manufacturing
  • Length: 0 mm
  • Series: 106
  • Primary Nominal Impedance (ohms): 4000
  • Secondary Nominal Impedance (ohms): 2600 CT
  • Max Primary D.C. ma.: 10
  • Primary DCR (Ohms) +/- 15%: 340
  • Secondary DCR (Ohms) +/- 15%: 100
  • Output Milliwatts: 150
  • Insertion Loss (dB): 1
  • Low Frequency Roll Off -1dB (Hz): 215
  • RoHS: ROHS Compliant
  • ECCN: EAR99
  • HTSUS: 8504.31.4035
  • Country_of_Origin: CA
  • USMCA_Compliant: Yes
  • REACH_Compliant: Yes
  • UPC: 623980612072
  • UNSPSC: 39121017
  • GTIN-14: 00623980181202
