106Q

  • BRVN:
    BRVN-106Q
  • MPN:
    106Q
  • MFR:
  • Description:
    Audio transformer, potted, primary 48 CTohms , secondary 3.2 ohms
106Q

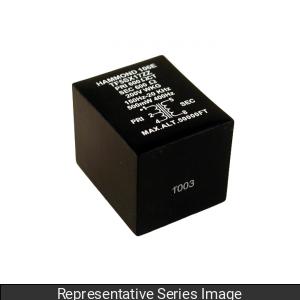

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.

  • Description: Audio transformer, potted, primary 48 CTohms , secondary 3.2 ohms
  • Manufacturer: Hammond Manufacturing
  • Length: 0 mm
  • Series: 106
  • Primary Nominal Impedance (ohms): 48 CT
  • Secondary Nominal Impedance (ohms): 3.2
  • Max Primary D.C. ma.: 32
  • Primary DCR (Ohms) +/- 15%: 2.4
  • Secondary DCR (Ohms) +/- 15%: 0.3
  • Output Milliwatts: 1500
  • Insertion Loss (dB): 1
  • Low Frequency Roll Off -1dB (Hz): 170
  • RoHS: ROHS Compliant
  • ECCN: EAR99
  • HTSUS: 8504.31.4035
  • Country_of_Origin: CA
  • USMCA_Compliant: Yes
  • REACH_Compliant: Yes
  • UPC: 623980612072
  • UNSPSC: 39121017
  • GTIN-14: 00623980181509
