1406-1

Datasheet
1406-1

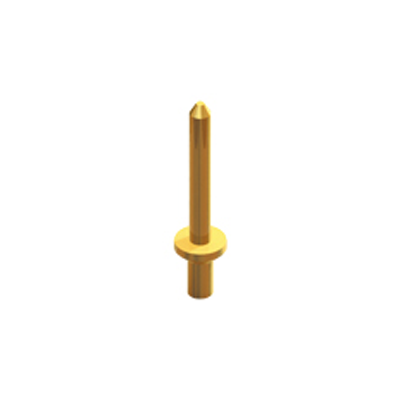

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.

  • Description: CONN PC PIN CIRC 0.024DIA GOLD
  • Manufacturer: Keystone Electronics
  • Length: 0 mm
  • Series: -
  • Product Status: Active
  • Mounting Type: Through Hole
  • Terminal Type: PC Pin
  • Termination: Swage
  • Insulation: Non-Insulated
  • Length - Below Flange: 0.047" (1.19mm)
  • Length - Overall: 0.260" (6.60mm)
  • Flange Diameter: 0.060" (1.52mm)
  • Mounting Hole Diameter: 0.035" (0.89mm)
  • Board Thickness: 0.032" (0.81mm)
  • Contact Material: Brass
  • Contact Finish: Gold
  • Contact Finish Thickness: 10.0µin (0.25µm)
  • Terminal Style: Single End
  • Pin Size - Above Flange: 0.024" (0.61mm) Dia
  • Pin Size - Below Flange: -
  • Length - Above Flange: 0.188" (4.78mm)
