1536W

  • BRVN:
    BRVN-1536W
  • MPN:
    1536W
  • MFR:
  • Description:
    RF Choke, heavy duty hash choke, inductance 125uH, DC current 3.5A, 1536 series
1536W

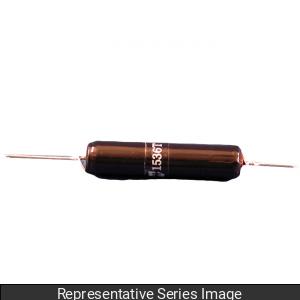

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.

  • Description: RF Choke, heavy duty hash choke, inductance 125uH, DC current 3.5A, 1536 series
  • Manufacturer: Hammond Manufacturing
  • Length: 0 mm
  • Series: 1536
  • Inductance +/- 20% (uH): 125
  • D.C. Resistance (ohms): 0.08
  • Self-Resonant Frequency (kHz): 2.65
  • Max. D.C. Current (Amps): 3.5
  • Coil Diameter: 0.5
  • Core Length: 1.25
  • RoHS: ROHS Compliant
  • ECCN: EAR99
  • HTSUS: 8504.50.8000
  • Country_of_Origin: CN
  • USMCA_Compliant: No
  • REACH_Compliant: Yes
  • UPC: 623980612072
  • UNSPSC: 39121017
  • GTIN-14: 00623980297408
