1540M23

  • BRVN:
    BRVN-1540M23
  • MPN:
    1540M23
  • MFR:
  • Description:
    RF Choke, heavy duty hash choke, inductance 1800uH, DC current 1.4A, 1540 series
1540M23

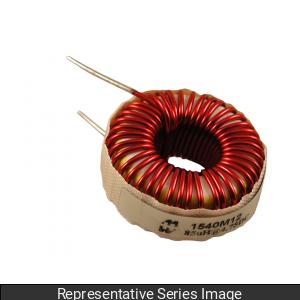

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.

  • Description: RF Choke, heavy duty hash choke, inductance 1800uH, DC current 1.4A, 1540 series
  • Manufacturer: Hammond Manufacturing
  • Length: 0 mm
  • Series: 1540
  • Inductance Ls +/- 15% @ 0A D.C. (uH): 1800
  • Rated D.C. Current (Amps): 2.5
  • Minimum Inductance at Rated D.C. (uH): 1000
  • D.C> Resistance Max (Ohms): 0.55
  • D.C. Amps for 0.8 Ls: 1.4
  • RoHS: ROHS Compliant
  • ECCN: EAR99
  • HTSUS: 8504.50.8000
  • Country_of_Origin: CA
  • USMCA_Compliant: Yes
  • REACH_Compliant: Yes
  • UPC: 623980612072
  • UNSPSC: 39121017
  • GTIN-14: 00623980201153
