1640SEA

  • BRVN:
    BRVN-1640SEA
  • MPN:
    1640SEA
  • MFR:
  • Description:
    Tube output transformer, single ended , 30W, primary 1250 ohms, 200 ma.
1640SEA

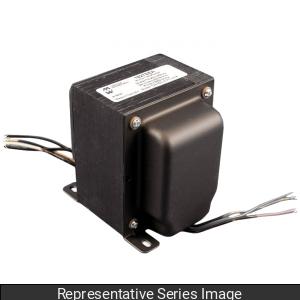

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.

  • Description: Tube output transformer, single ended , 30W, primary 1250 ohms, 200 ma.
  • Manufacturer: Hammond Manufacturing
  • Length: 0 mm
  • Series: 1627-1642
  • Audio Watts: 30
  • Impedance (Ohms): 1250
  • Primary Max. DC Bias (mA): 200 ma.
  • Inductance (H): 14 Henrys
  • Ultra-Linear 40% Primary Tap: Yes
  • Secondary Impedance: 42468
  • Hipot Test (VRMS): 2000
  • Suggested Tubes - Triodes: Parallel - 2A3, 6A3, 6B4G, 300B, 572B, 811A
  • Suggested Tubes - Pentodes: Parallel - 6550, 6CA7
  • RoHS: ROHS Compliant
  • ECCN: EAR99
  • HTSUS: 9801.00.1098
  • Country_of_Origin: US
  • USMCA_Compliant: No
  • REACH_Compliant: Yes
  • UPC: 623980612072
  • UNSPSC: 39121017
  • GTIN-14: 00623980008332
