1642SE

  • BRVN:
    BRVN-1642SE
  • MPN:
    1642SE
  • MFR:
  • Description:
    Tube output transformer, single ended , 75W, primary 5000 ohms, 300 ma.
1642SE

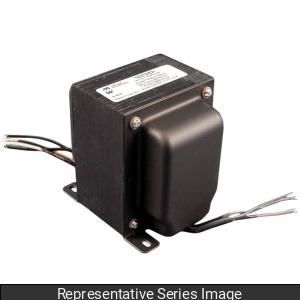

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.

  • Description: Tube output transformer, single ended , 75W, primary 5000 ohms, 300 ma.
  • Manufacturer: Hammond Manufacturing
  • Length: 0 mm
  • Series: 1627-1642
  • Audio Watts: 75
  • Impedance (Ohms): 5000
  • Primary Max. DC Bias (mA): 300 ma.
  • Inductance (H): 53 Henrys
  • Ultra-Linear 40% Primary Tap: No
  • Secondary Impedance: 42468
  • Hipot Test (VRMS): 3500
  • Suggested Tubes - Triodes: Parallel - 211, 572, 811A, 845
  • Suggested Tubes - Pentodes: -
  • RoHS: ROHS Compliant
  • ECCN: EAR99
  • HTSUS: 8504.31.4065
  • Country_of_Origin: CA
  • USMCA_Compliant: Yes
  • REACH_Compliant: Yes
  • UPC: 623980612072
  • UNSPSC: 39121017
  • GTIN-14: 00623980208206
