171A
-
BRVN:BRVN-171A
-
MPN:171A
-
MFR:
-
Description:Isolation transformer, plug-in, 115VAC, 50/60 Hz to 115VAC, 100VA, 171 Series

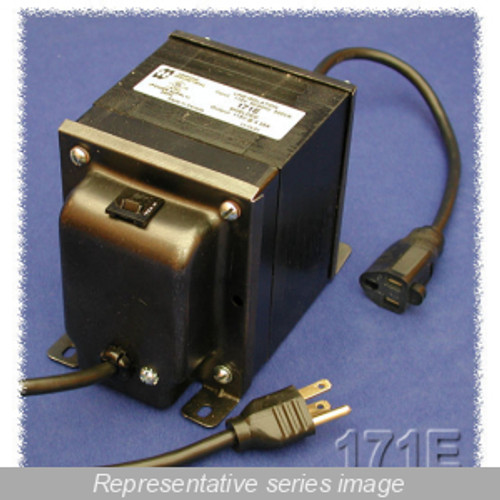

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: Isolation transformer, plug-in, 115VAC, 50/60 Hz to 115VAC, 100VA, 171 Series
- Manufacturer: Hammond Manufacturing
- Length: 0 mm
- Series: 171
- Standards: culus
- Power Rating (VA): 100
- Leakage Current: 72.12 µA
- Full Load Efficiency: 0.89
- Full Load Total Harmonic Distortion: 0.0021
- Surge/Noise Suppression: -37.7 dB
- Capacitance Between Windings @ 1KHz: 15 pF
- Circuit Breaker (Amps): 1
-
- RoHS: ROHS Compliant
- ECCN: EAR99
- HTSUS: 8504.31.4065
- Country_of_Origin: CA
- USMCA_Compliant: Yes
- REACH_Compliant: Yes
- UPC: 623980612072
- UNSPSC: 39121017
- GTIN-14: 00623980250304
