197AB20
-
BRVN:BRVN-197AB20
-
MPN:197AB20
-
MFR:
-

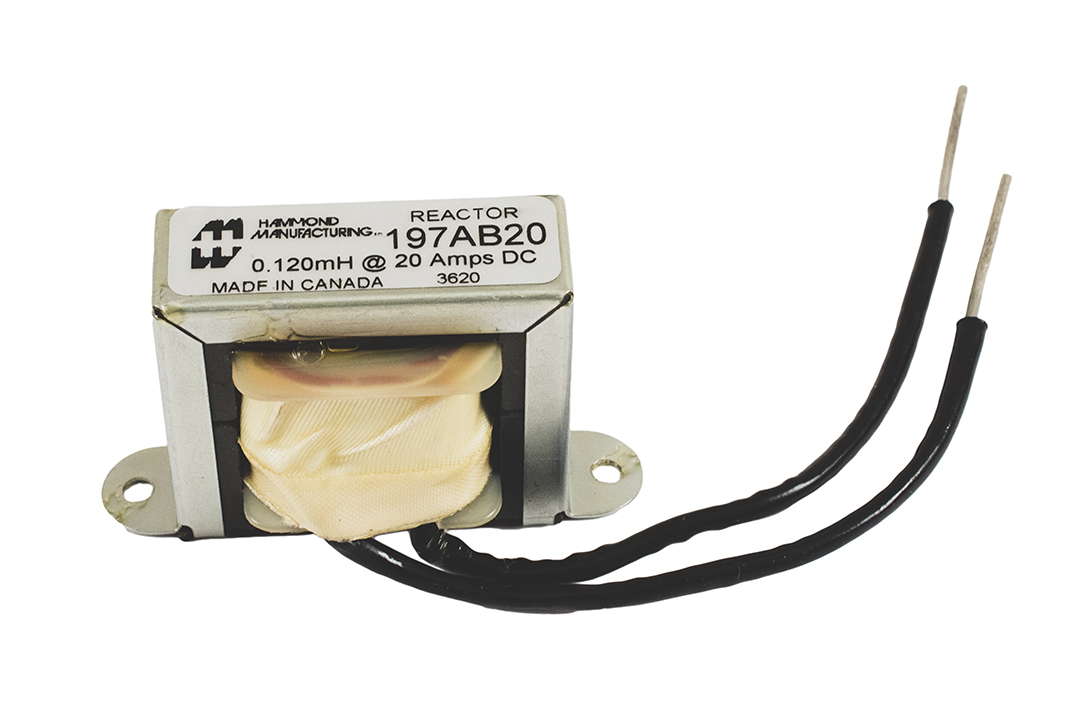

Description:High Frequency Reactor, 0.12 mH, 20A, Wire leads, 6 inch min., 197 Series
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: High Frequency Reactor, 0.12 mH, 20A, Wire leads, 6 inch min., 197 Series
- Manufacturer: Hammond Manufacturing
- Width: 8.26 mm
- Height: 5.08 mm
- Depth: 4.19 mm
- Length: 0 mm
- Series: 197
- Inductance: 0.12
- Current (A): 20
- Self-Resonant Frequency (kHz): 1246.4
- DCR (mOhm): 25
- Connection: Wire leads, 6 inch min.
-
- RoHS: ROHS Compliant
- ECCN: EAR99
- HTSUS: 8504.50.8000
- Country_of_Origin: CA
- USMCA_Compliant: Yes
- REACH_Compliant: Yes
- UPC: 623980612072
- UNSPSC: 39121017
- GTIN-14: 00623980436241
