1SMA4754-AU_R1_000A1

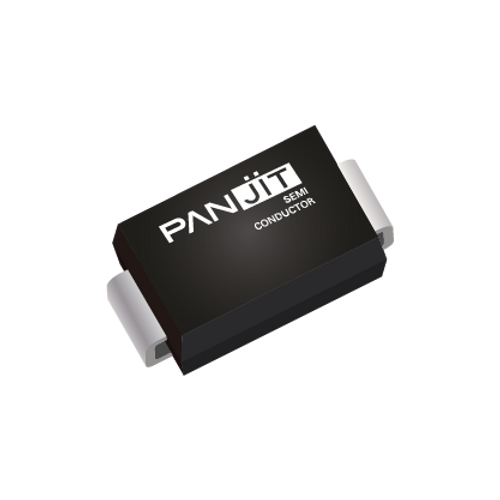

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: SURFACE MOUNT SILICON ZENER DIOD
- Manufacturer: PANJIT
- Length: 0 mm
- Series: ZSM-10H
- Product Status: Active
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: DO-214AC, SMA
- Supplier Device Package: SMA (DO-214AC)
- Power - Max: 1 W
- Voltage - Zener (Nom) (Vz): 39 V
- Tolerance: ±5%
- Impedance (Max) (Zzt): 60 Ohms
- Current - Reverse Leakage @ Vr: 100 nA @ 29.7 V
- Voltage - Forward (Vf) (Max) @ If: -
-
- Datasheet: BRVN-1SMA4754-AU_R1_000A1
-
- ECCN: EAR99
- HTSUS: 8541109000
