373JX

  • BRVN:
    BRVN-373JX
  • MPN:
    373JX
  • MFR:
  • Description:
    Transformer, high voltage & filament, 710VA, 700V C.T. @ 863ma., 300 Series
373JX

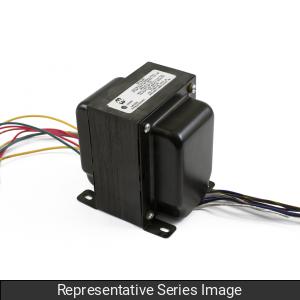

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.

  • Description: Transformer, high voltage & filament, 710VA, 700V C.T. @ 863ma., 300 Series
  • Manufacturer: Hammond Manufacturing
  • Length: 0 mm
  • Series: 300
  • Standards: csa
  • Power Rating (VA): 710
  • Primary VAC: Universal - 100, 110, 120, 200, 220,230, 240 VAC 50/60 Hz
  • A.C. High Voltage Secondary RMS: 700V C.T. @ 863ma.
  • Bias Tap on High Voltage Secondary w/ C.T. Grounded (VAC): 50
  • Filament Number1 (VAC): 5V C.T. @ 6A
  • Filament Number2 (VAC): 6.3V C.T. @ 12A
  • Mounting Style: Vertical ("X")
  • RoHS: ROHS Compliant
  • ECCN: EAR99
  • HTSUS: 8504.31.4065
  • Country_of_Origin: CA
  • USMCA_Compliant: Yes
  • REACH_Compliant: Yes
  • UPC: 623980612072
  • UNSPSC: 39121017
  • GTIN-14: 00623980050089
