51DP30-01-2-AJN

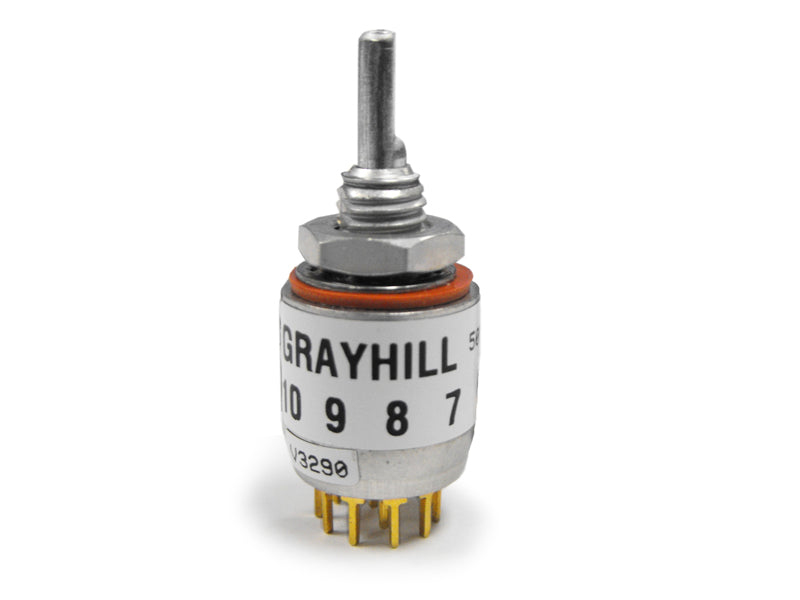

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: SWITCH ROTARY 2-6POS 150MA 115V
- Manufacturer: Grayhill
- Length: 0 mm
- Series: 51
- Product Status: Active
- Mounting Type: Panel Mount, Through Hole
- Current Rating (Amps): 150mA (AC), 200mA (DC)
- Voltage Rating - AC: 115 V
- Voltage Rating - DC: 28 V
- Actuator Type: Flatted (3.17mm Dia)
- Actuator Length: 9.53mm
- Termination Style: PC Pin
- Features: -
- Contact Timing: Non-Shorting (BBM)
- Contact Material: -
- Contact Finish: Gold
- Number of Positions: 2 ~ 6
- Index Stops: Adjustable
- Number of Decks: 1
- Number of Poles per Deck: 2
- Circuit per Deck: DP6T
- Angle of Throw: 30°
- Depth Behind Panel: 13.64mm
-
- Datasheet: BRVN-51DP30-01-2-AJN
