60AR18-4-060C

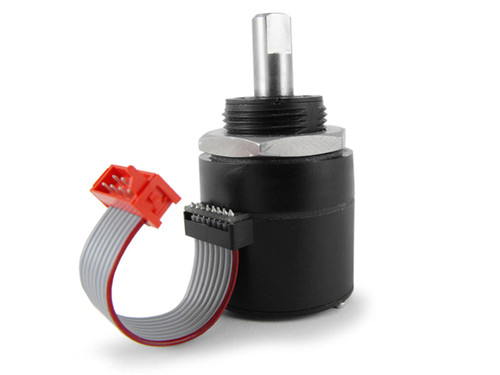

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: ROTARY ENCODER OPT 20PPR 6" CBL
- Manufacturer: Grayhill
- Length: 0 mm
- Series: 60AR
- Mounting Type: Panel Mount
- Switch Function: 360° Rotational, 4-Way Directional, Center Select
- Actuator Type: Flatted (6.35mm Dia)
- Termination Style: Cable with Connector
- Panel Cutout Dimensions: Circular - 17.25mm Dia
- Ingress Protection: IP67 - Dust Tight, Waterproof
- Features: -
- Operating Temperature: -40°C ~ 85°C
- Type: Joystick, 3 - Axis
- Contact Material: -
- Contact Finish: -
- Output: Digital (Mechanical Switch, Pulse)
- Product Status: Active
- Current Rating (Amps): 10mA (DC)
- Voltage Rating - AC: -
- Voltage Rating - DC: 5 V
- Voltage - Supply: 5VDC
- Functions, Extra: -
-
- Datasheet: BRVN-60AR18-4-060C
