71BD36-02-2-AJN

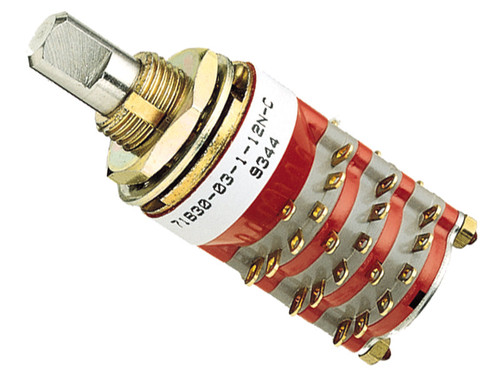

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: SWITCH ROTARY 2-5POS 250MA 115V
- Manufacturer: Grayhill
- Length: 0 mm
- Series: 71
- Product Status: Active
- Mounting Type: Panel Mount
- Current Rating (Amps): 250mA (AC/DC)
- Voltage Rating - AC: 115 V
- Voltage Rating - DC: 30 V
- Actuator Type: Flatted (6.35mm Dia)
- Actuator Length: 9.53mm
- Termination Style: Solder Lug
- Features: -
- Contact Timing: Non-Shorting (BBM)
- Contact Material: Silver Alloy
- Contact Finish: -
- Number of Positions: 2 ~ 5
- Index Stops: Adjustable
- Number of Decks: 2
- Number of Poles per Deck: 2
- Circuit per Deck: DP5T
- Angle of Throw: 36°
- Depth Behind Panel: 24.87mm
-
- Datasheet: BRVN-71BD36-02-2-AJN
