75AP36-01-1-08N

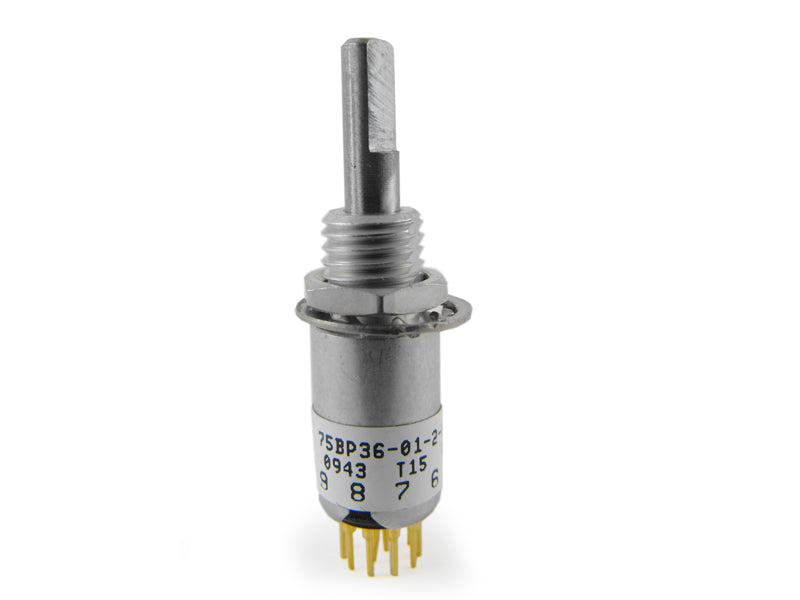

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: SWITCH ROTARY 8POS 200MA 115V
- Manufacturer: Grayhill
- Length: 0 mm
- Series: 75
- Product Status: Active
- Mounting Type: Through Hole
- Current Rating (Amps): 200mA (AC/DC)
- Voltage Rating - AC: 115 V
- Voltage Rating - DC: 30 V
- Actuator Type: Screwdriver Slot
- Actuator Length: Flush
- Termination Style: PC Pin
- Features: -
- Contact Timing: Non-Shorting (BBM)
- Contact Material: Silver Cadmium Oxide (AgCdO)
- Contact Finish: Gold
- Number of Positions: 8
- Index Stops: Fixed
- Number of Decks: 1
- Number of Poles per Deck: 1
- Circuit per Deck: SP8T
- Angle of Throw: 36°
- Depth Behind Panel: 12.42mm
-
- Datasheet: BRVN-75AP36-01-1-08N
