76HPSB10GWT

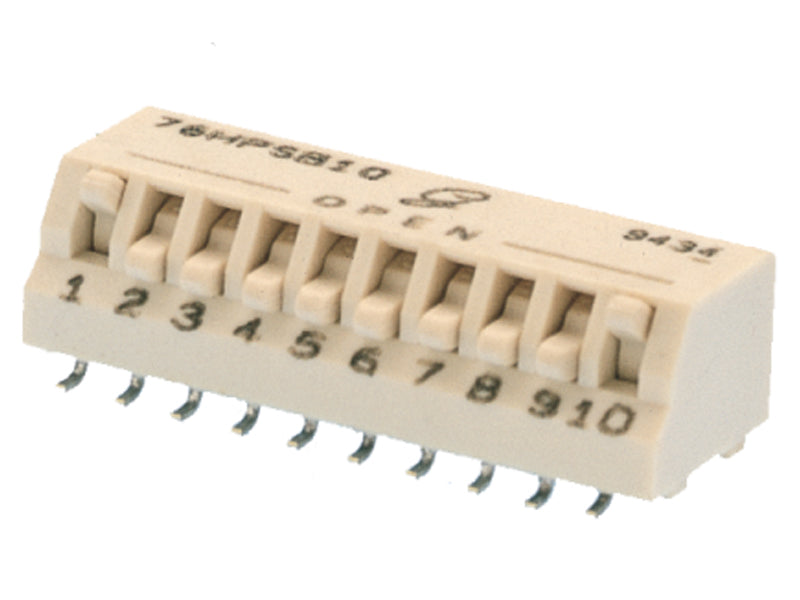

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: SWITCH PIANO DIP SPST 150MA 30V
- Manufacturer: Grayhill
- Length: 0 mm
- Series: 76HP
- Mounting Type: Surface Mount, Right Angle
- Circuit: SPST
- Actuator Type: Piano
- Termination Style: Gull Wing
- Features: -
- Operating Temperature: -40°C ~ 85°C
- Contact Material: Copper Alloy
- Contact Finish: Gold
- Number of Positions: 10
- Voltage Rating: 30VDC
- Actuator Level: Raised
- Height Above Board: 0.337" (8.56mm)
- Pitch: 0.100" (2.54mm), Full
- Washable: No
- Product Status: Active
- Current Rating (Amps): 150mA
-
- Datasheet: BRVN-76HPSB10GWT
