76RSC02T

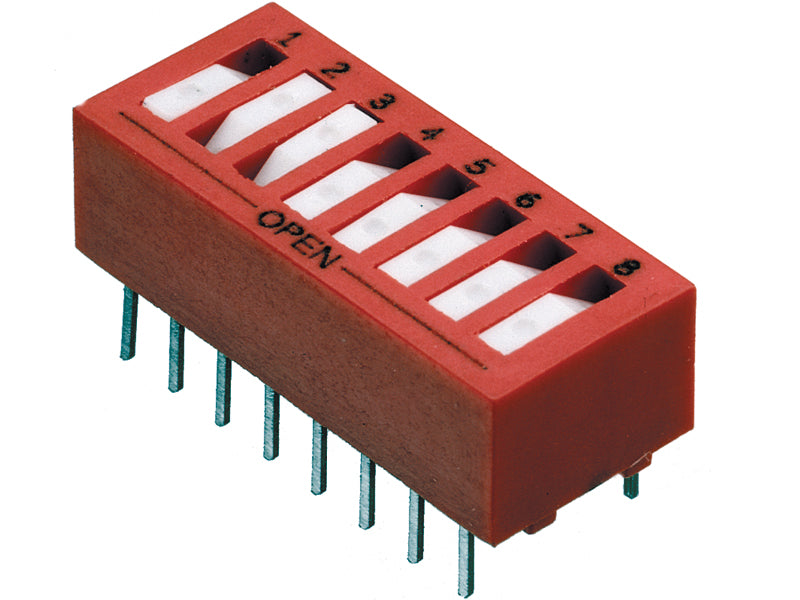

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: SWITCH ROCKER DIP SPDT 150MA 30V
- Manufacturer: Grayhill
- Length: 0 mm
- Series: 76
- Mounting Type: Through Hole
- Circuit: SPDT
- Actuator Type: Rocker
- Termination Style: PC Pin
- Features: -
- Operating Temperature: -40°C ~ 85°C
- Contact Material: Copper Alloy
- Contact Finish: Gold
- Number of Positions: 2
- Voltage Rating: 30VDC
- Actuator Level: Flush, Recessed
- Height Above Board: 0.267" (6.78mm)
- Pitch: 0.100" (2.54mm), Full
- Washable: No
- Product Status: Active
- Current Rating (Amps): 150mA
-
- Datasheet: BRVN-76RSC02T
