94HFB10RAT

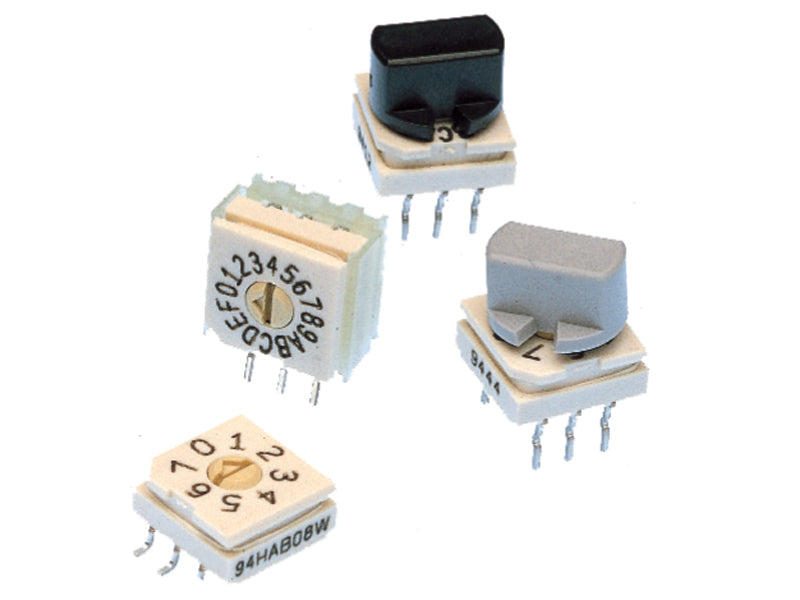

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: SWITCH ROTARY DIP BCD 100MA 50V
- Manufacturer: Grayhill
- Length: 0 mm
- Series: 94H
- Mounting Type: Through Hole, Right Angle
- Circuit: BCD
- Actuator Type: Rotary for Tool
- Termination Style: PC Pin
- Features: Sealed
- Operating Temperature: -40°C ~ 85°C
- Contact Material: Copper Alloy
- Contact Finish: Gold
- Number of Positions: 10
- Voltage Rating: 50VDC
- Actuator Level: Flush, Recessed
- Height Above Board: 0.400" (10.16mm)
- Pitch: 0.100" (2.54mm), Full
- Washable: Yes
- Product Status: Active
- Current Rating (Amps): 100mA
-
- Datasheet: BRVN-94HFB10RAT
