97C08T

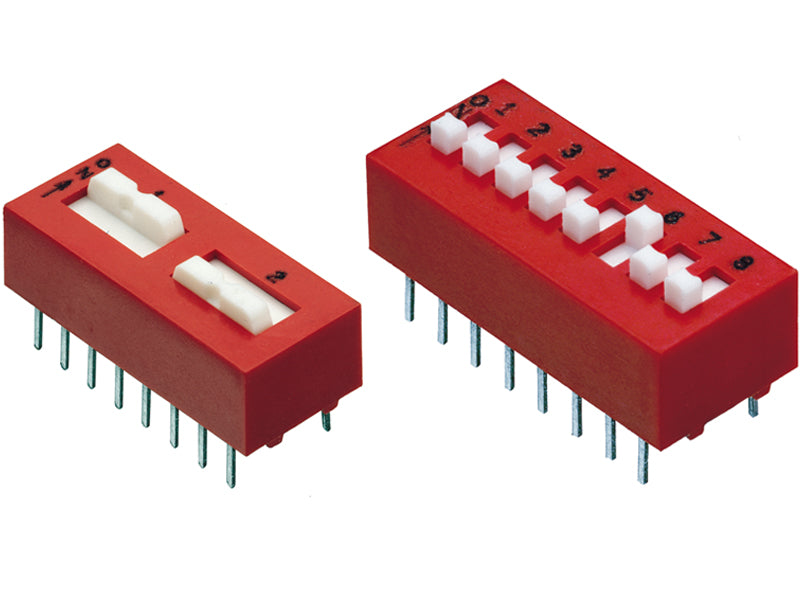

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: SWITCH SLIDE DIP SPST 25MA 24V
- Manufacturer: Grayhill
- Length: 0 mm
- Series: 97
- Mounting Type: Surface Mount
- Circuit: SPST
- Actuator Type: Slide (Standard)
- Termination Style: Gull Wing
- Features: -
- Operating Temperature: -40°C ~ 85°C
- Contact Material: Copper Alloy
- Contact Finish: Gold
- Number of Positions: 8
- Voltage Rating: 24VDC
- Actuator Level: Flush, Recessed
- Height Above Board: 0.063" (1.60mm)
- Pitch: 0.050" (1.27mm), Half
- Washable: No
- Product Status: Active
- Current Rating (Amps): 25mA
-
- Datasheet: BRVN-97C08T
