A-DF 09 PP/LP-THT
-
BRVN:BRVN-A-DF 09 PP/LP-THT
-
MPN:A-DF 09 PP/LP-THT
-
MFR:
-
Description:CONN D-SUB RCPT 9POS VERT SLDR

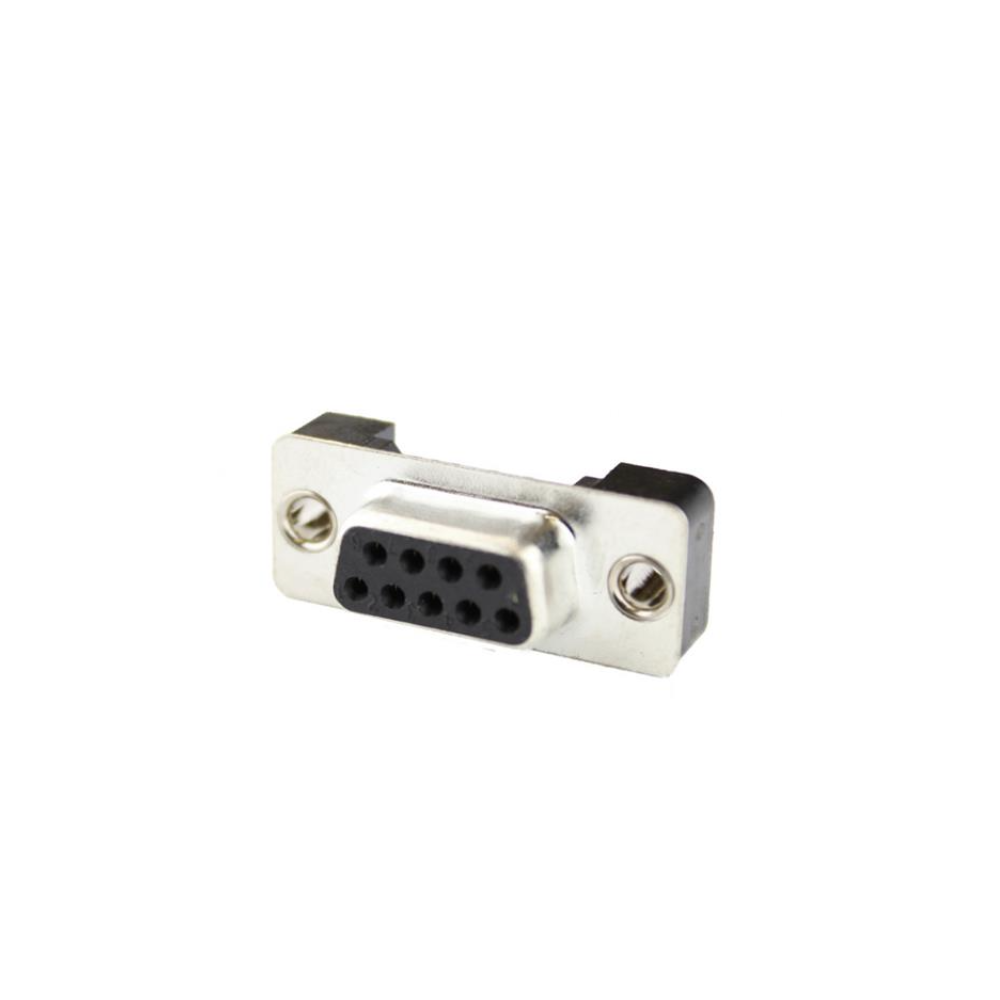

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: CONN D-SUB RCPT 9POS VERT SLDR
- Manufacturer: ASSMANN WSW Componets
- Length: 0 mm
- Series: -
- Product Status: Obsolete
- Mounting Type: Through Hole
- Features: -
- Connector Type: Receptacle, Female Sockets
- Termination: Solder
- Ingress Protection: -
- Current Rating (Amps): 3A
- Contact Finish: Gold
- Contact Finish Thickness: 1.00µin (0.025µm)
- Number of Positions: 9
- Material Flammability Rating: UL94 V-0
- Number of Rows: 2
- Connector Style: D-Sub
- Shell Material, Finish: Steel, Nickel Plated
- Contact Type: Signal
- Shell Size, Connector Layout: 1 (DE, E)
- Flange Feature: Housing/Shell (Unthreaded)
- Primary Material: -
- Backset Spacing: -
-
- Datasheet: BRVN-A-DF 09 PP/LP-THT
