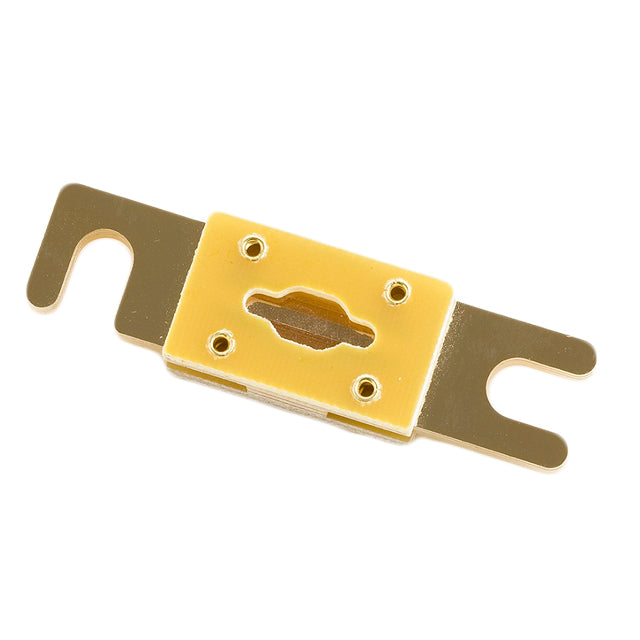

ANE-250A
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Packaging Type: Bulk
| Qty | Unit Price | Ext. Price |
|---|---|---|
| 1 | $23.65 | $23.65 |
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: FUSE STRIP 250A 125VAC/32VDC
- Manufacturer: OptiFuse
- Length: 0 mm
- Series: ANE
- Product Status: Active
- Voltage Rating - AC: 125 V
- Current Rating (Amps): 250A
- Approval Agency: -
- Package / Case: Rectangular, Blade
- Operating Temperature: -
- Mounting Type: Bolt Mount
- Size / Dimension: 1.453" L x 0.882" W x 0.276" H (36.90mm x 22.40mm x 7.00mm)
- Fuse Type: Fuse Strip
- Voltage Rating - DC: 32 V
- Response Time: Fast Blow
- Breaking Capacity @ Rated Voltage: 1.5kA AC, 1kA DC
- Applications: Automotive
- Features: -
- Class: -
-
- Datasheet: BRVN-ANE-250A
