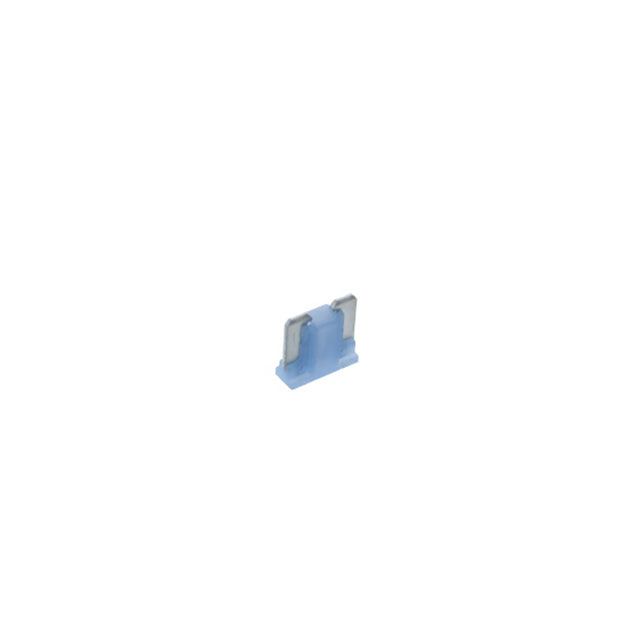

ANS-15A
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Packaging Type: Bulk
| Qty | Unit Price | Ext. Price |
|---|---|---|
| 1 | $0.48 | $0.48 |
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: FUSE AUTO 15A 32VDC BLADE MINI
- Manufacturer: OptiFuse
- Length: 0 mm
- Series: ANS
- Product Status: Active
- Voltage Rating - AC: -
- Current Rating (Amps): 15 A
- Approval Agency: ISO8820, SAE
- Package / Case: Blade, Miniature (Low Profile)
- Operating Temperature: -
- Mounting Type: Requires Holder
- Size / Dimension: 0.433" L x 0.154" W x 0.344" H (11.00mm x 3.91mm x 8.75mm)
- Fuse Type: Automotive
- Voltage Rating - DC: 32 V
- Response Time: -
- Breaking Capacity @ Rated Voltage: 1kA
- Melting I²t: -
- Color: Blue
-
- Datasheet: BRVN-ANS-15A
