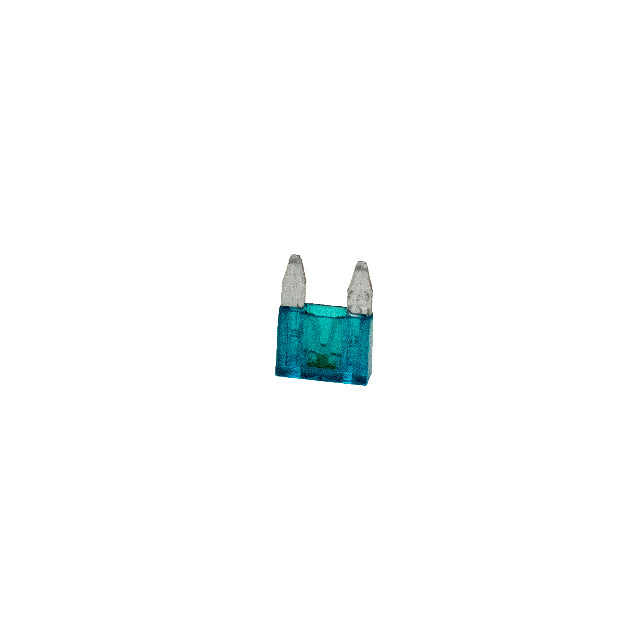

APM-35A
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: FUSE AUTO 35A 32VDC BLADE MINI
- Manufacturer: OptiFuse
- Length: 0 mm
- Series: APM
- Product Status: Active
- Voltage Rating - AC: -
- Current Rating (Amps): 35 A
- Approval Agency: ISO8820-3, SAE-J2077
- Package / Case: Blade, Miniature
- Operating Temperature: -
- Mounting Type: Requires Holder
- Size / Dimension: 0.433" L x 0.150" W x 0.362" H (11.00mm x 3.80mm x 9.20mm)
- Fuse Type: Automotive
- Voltage Rating - DC: 32 V
- Response Time: -
- Breaking Capacity @ Rated Voltage: 1kA
- Melting I²t: -
- Color: Blue, Green
-
- Datasheet: BRVN-APM-35A
