BAS70SW_R1_00001

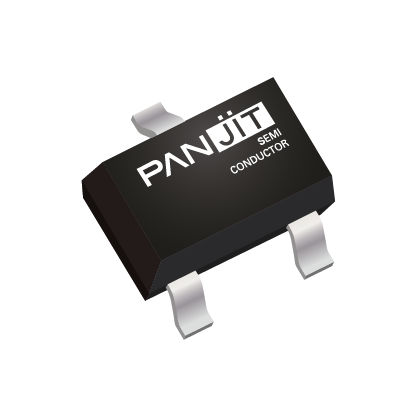

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: SURFACE MOUNT SCHOTTKY DIODE
- Manufacturer: PANJIT
- Length: 0 mm
- Series: SSM-02TACS
- Product Status: Active
- Mounting Type: Surface Mount
- Package / Case: SC-70, SOT-323
- Supplier Device Package: SOT-323
- Current - Reverse Leakage @ Vr: 10 µA @ 70 V
- Voltage - Forward (Vf) (Max) @ If: 1 V @ 15 mA
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 70 V
- Speed: Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time (trr): -
- Operating Temperature - Junction: 150°C
- Diode Configuration: 1 Pair Series Connection
- Current - Average Rectified (Io) (per Diode): 200mA
-
- Datasheet: BRVN-BAS70SW_R1_00001
-
- ECCN: EAR99
- HTSUS: 8541109000
