BAT30S_R1_00001

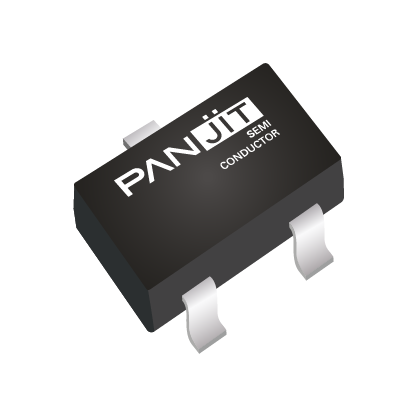

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: SMALL SIGNAL SCHOTTKY DIODES
- Manufacturer: PANJIT
- Length: 0 mm
- Series: SSM-03TCS
- Product Status: Active
- Mounting Type: Surface Mount
- Package / Case: TO-236-3, SC-59, SOT-23-3
- Supplier Device Package: SOT-23
- Current - Reverse Leakage @ Vr: 5 µA @ 30 V
- Voltage - Forward (Vf) (Max) @ If: 530 mV @ 300 mA
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 30 V
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Operating Temperature - Junction: 150°C
- Diode Configuration: 1 Pair Series Connection
- Current - Average Rectified (Io) (per Diode): 300mA
-
- Datasheet: BRVN-BAT30S_R1_00001
-
- ECCN: EAR99
- HTSUS: 8541109000
