BAV199S_R1_00001

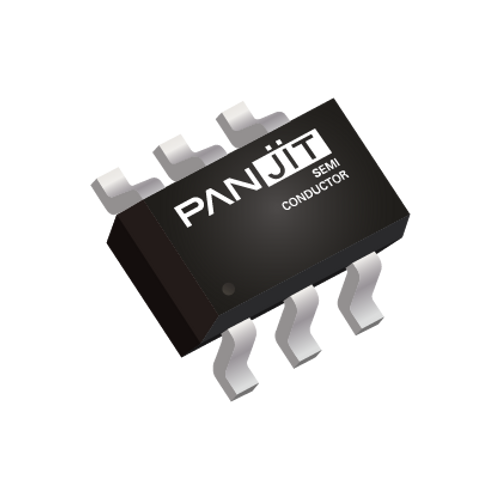

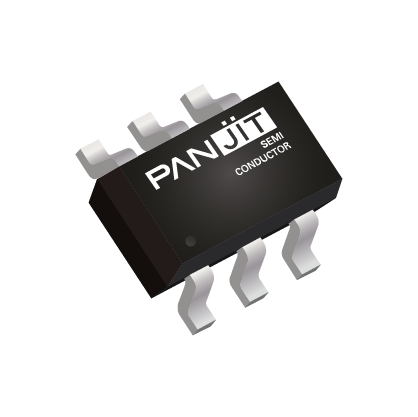

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: SOT-363, SWITCHING
- Manufacturer: PANJIT
- Length: 0 mm
- Series: USM-02TSCS
- Product Status: Active
- Mounting Type: Surface Mount
- Package / Case: 6-TSSOP, SC-88, SOT-363
- Supplier Device Package: SOT-363
- Current - Reverse Leakage @ Vr: 5 nA @ 75 V
- Voltage - Forward (Vf) (Max) @ If: 1250 V @ 150 mA
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 75 V
- Speed: Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time (trr): 3 µs
- Operating Temperature - Junction: -55°C ~ 150°C
- Diode Configuration: 2 Pair Series Connection
- Current - Average Rectified (Io) (per Diode): 200mA (DC)
-
- Datasheet: BRVN-BAV199S_R1_00001
-
- ECCN: EAR99
- HTSUS: 8541109000
