BC848AW_R1_00001

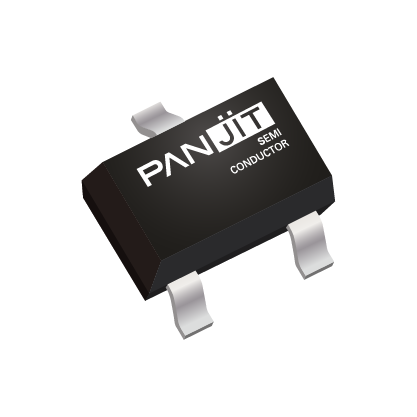

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: TRANS NPN 30V 0.1A SOT323
- Manufacturer: PANJIT
- Length: 0 mm
- Series: GPT-02TAN
- Product Status: Active
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: SC-70, SOT-323
- Supplier Device Package: SOT-323
- Power - Max: 250 mW
- Transistor Type: NPN
- Current - Collector (Ic) (Max): 100 mA
- Voltage - Collector Emitter Breakdown (Max): 30 V
- Vce Saturation (Max) @ Ib, Ic: 600mV @ 5mA, 100mA
- Current - Collector Cutoff (Max): 15nA (ICBO)
- DC Current Gain (hFE) (Min) @ Ic, Vce: 110 @ 2mA, 5V
- Frequency - Transition: 100MHz
-
- Datasheet: BRVN-BC848AW_R1_00001
-
- ECCN: EAR99
- HTSUS: 8541299000
