BCSS-240-S-08-G-LF
-
BRVN:BRVN-BCSS-240-S-08-G-LF
-
MPN:BCSS-240-S-08-G-LF
-
MFR:
-
Description:.079 Socket

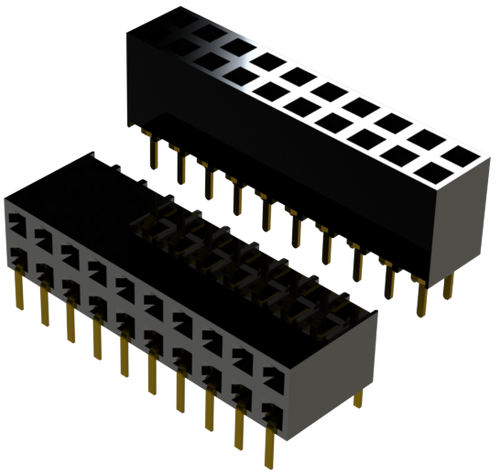

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Packaging Type: Bag
| Qty | Unit Price | Ext. Price |
|---|---|---|
| 23 | $2.80 | $2.80 |
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: .079 Socket
- Manufacturer: Major League Electronics
- Length: 0 mm
- Series: BCSS-2-H
- Product Status: Active
- Mounting Type: Through Hole, Right Angle
- Features: -
- Material Flammability Rating: -
- Voltage Rating: -
- Current Rating (Amps): 2A
- Number of Positions: 40
- Connector Type: Receptacle
- Contact Type: Female Socket
- Style: Board to Board
- Number of Positions Loaded: All
- Pitch - Mating: 0.079" (2.00mm)
- Number of Rows: 1
- Row Spacing - Mating: -
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Insulation Color: Black
- Insulation Height: 0.079" (2.00mm)
- Contact Length - Post: 0.094" (2.40mm)
- Operating Temperature: -40°C ~ 105°C
- Contact Finish - Post: Gold
- Mated Stacking Heights: -
- Ingress Protection: -
-
- Datasheet: BRVN-BCSS-240-S-08-G-LF
