BD1-DC
-
BRVN:BRVN-BD1-DC
-
MPN:BD1-DC
-
MFR:
-

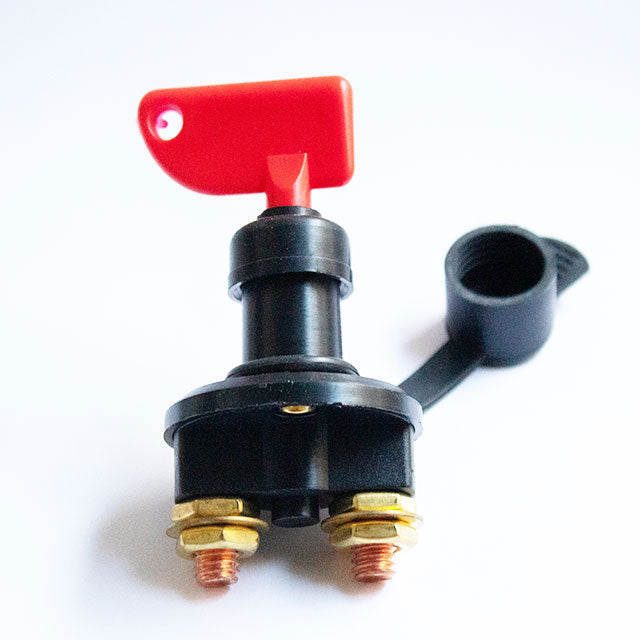

Description:BATTERY DISCONNECT-REMOVABLE KEY
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: BATTERY DISCONNECT-REMOVABLE KEY
- Manufacturer: Switch Components
- Length: 0 mm
- Series: BD
- Product Status: Active
- Mounting Type: Chassis Mount
- Circuit: SPST
- Switch Function: Off-On
- Current Rating (Amps): 300A (DC)
- Voltage Rating - DC: 12 V
- Illumination: Non-Illuminated
- Illumination Type, Color: -
- Illumination Voltage (Nominal): -
- Termination Style: Stud
- Panel Cutout Dimensions: Circular - 23.50mm Dia
- Ingress Protection: -
- Features: -
- Operating Temperature: -
- Type: Battery Disconnect
- Number of Positions: 2
-
- Datasheet: BRVN-BD1-DC
