BHR-14-VSG-SMT

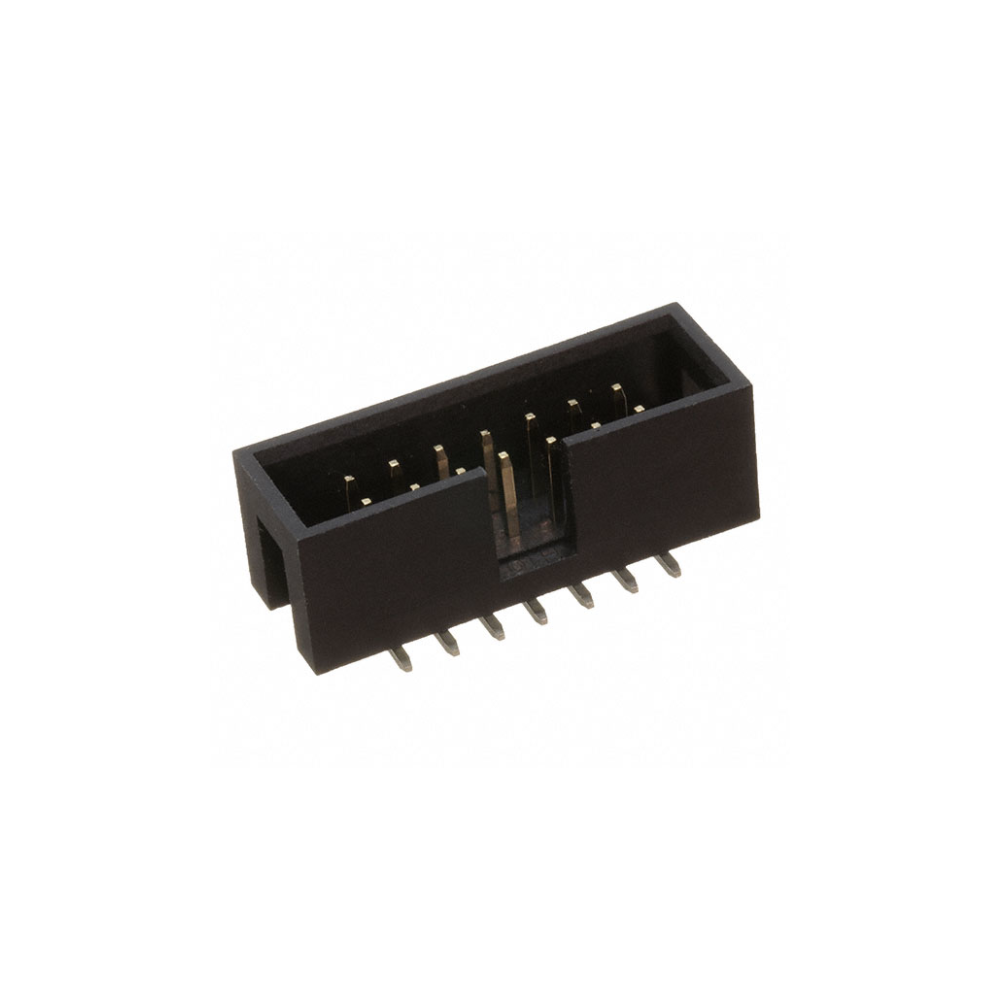

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: CONN HEADER SMD 14POS 2.54MM
- Manufacturer: Adam Tech
- Length: 0 mm
- Series: BHR
- Product Status: Active
- Features: Keying Slot
- Mounting Type: Surface Mount
- Current Rating Amps: 3A
- Ingress Protection: -
- Operating Temperature: -40°C ~ 105°C
- Connector Type: Header
- Number of Rows: 2
- Termination: Solder
- Contact Type: Male Pin
- Number of Positions: 14
- Fastening Type: Push-Pull
- Style: Board to Board or Cable
- Voltage Rating: 250VAC
- Insulation Color: Black
- Material Flammability Rating: UL94 V-0
- Contact Material: Brass
- Number of Positions Loaded: All
- Pitch Mating: 0.100" (2.54mm)
- Row Spacing Mating: 0.100" (2.54mm)
- Contact Finish Mating: Gold
- Contact Finish Thickness Mating: Flash
- Insulation Height: 0.413" (10.49mm)
- Contact Length Post: -
- Contact Finish Post: Tin
- Shrouding: Shrouded - 4 Wall
- Contact Length Mating: -
- Overall Contact Length: -
- Contact Shape: Square
- Insulation Material: Thermoplastic
-
- Datasheet: BRVN-BHR-14-VSG-SMT
