BSTC-106-D-110-24-GT-500-LF
-
BRVN:BRVN-BSTC-106-D-110-24-GT-500-LF
-
MPN:BSTC-106-D-110-24-GT-500-LF
-
MFR:
-
Description:.100 Header

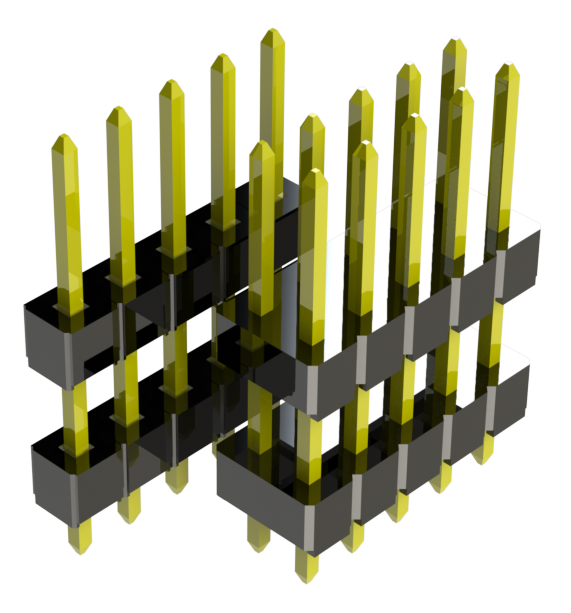

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Packaging Type: Bag
| Qty | Unit Price | Ext. Price |
|---|---|---|
| 87 | $0.72 | $0.72 |
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: .100 Header
- Manufacturer: Major League Electronics
- Length: 0 mm
- Series: BSTC-1
- Product Status: Active
- Pitch: 0.100" (2.54mm)
- Mounting Type: Through Hole
- Color: Black
- Number of Positions: 12
- Number of Rows: 2
- Termination: Solder
- Row Spacing: 0.100" (2.54mm)
- Length - Overall Pin: 0.930" (23.622mm)
- Length - Post (Mating): 0.320" (8.128mm)
- Length - Stack Height: 0.500" (12.700mm)
- Length - Tail: 0.110" (2.794mm)
- Contact Finish - Post (Mating): Gold
- Contact Finish Thickness - Post (Mating): 10.0µin (0.25µm)
-
- Datasheet: BRVN-BSTC-106-D-110-24-GT-500-LF
