BSTCM-605-D-08-GT-260-TR-P-LF
-
BRVN:BRVN-BSTCM-605-D-08-GT-260-TR-P-LF
-
MPN:BSTCM-605-D-08-GT-260-TR-P-LF
-
MFR:
-
Description:.050 x .100 Header

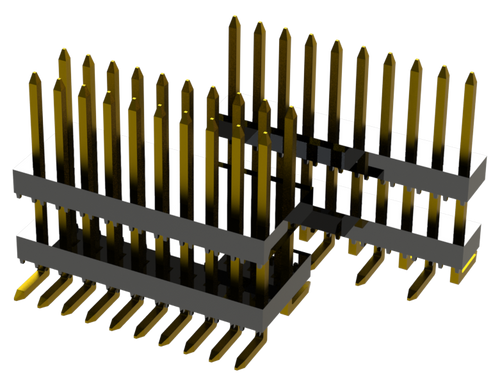

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Packaging Type: Bag
| Qty | Unit Price | Ext. Price |
|---|---|---|
| 1000 | $0.73 | $0.73 |
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: .050 x .100 Header
- Manufacturer: Major League Electronics
- Length: 0 mm
- Series: BSTCM-6
- Product Status: Active
- Pitch: 0.050" (1.27mm)
- Mounting Type: Surface Mount
- Color: Black
- Number of Positions: 10
- Number of Rows: 2
- Termination: Solder
- Row Spacing: 0.100" (2.54mm)
- Length - Overall Pin: 0.435" (11.049mm)
- Length - Post (Mating): 0.175" (4.445mm)
- Length - Stack Height: 0.260" (6.600mm)
- Length - Tail: -
- Contact Finish - Post (Mating): Gold
- Contact Finish Thickness - Post (Mating): 10.0µin (0.25µm)
-
- Datasheet: BRVN-BSTCM-605-D-08-GT-260-TR-P-LF
