BSTCM-706-D-180-11-F-125-TR-P-LF
-
BRVN:BRVN-BSTCM-706-D-180-11-F-125-TR-P-LF
-
MPN:BSTCM-706-D-180-11-F-125-TR-P-LF
-
MFR:
-

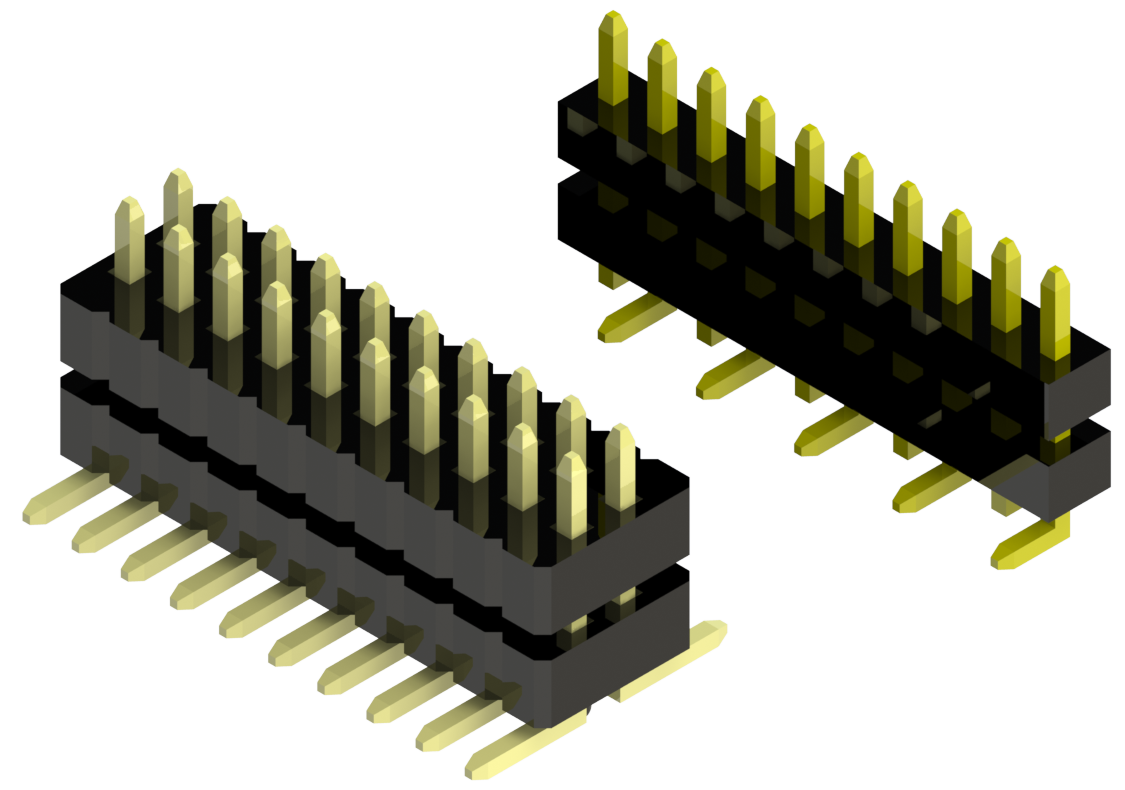

Description:.039 Header
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Packaging Type: Bag
| Qty | Unit Price | Ext. Price |
|---|---|---|
| 1000 | $0.83 | $0.83 |
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: .039 Header
- Manufacturer: Major League Electronics
- Length: 0 mm
- Series: BSTCM-7
- Product Status: Active
- Pitch: 0.039" (1.00mm)
- Mounting Type: Surface Mount
- Color: Black
- Number of Positions: 12
- Number of Rows: 2
- Termination: Solder
- Row Spacing: 0.039" (1.00mm)
- Length - Overall Pin: 0.310" (7.874mm)
- Length - Post (Mating): 0.180" (4.572mm)
- Length - Stack Height: 0.125" (3.175mm)
- Length - Tail: -
- Contact Finish - Post (Mating): Gold
- Contact Finish Thickness - Post (Mating): Flash
-
- Datasheet: BRVN-BSTCM-706-D-180-11-F-125-TR-P-LF
