BSTCR-110-D-090-20-GT-210-LF
-
BRVN:BRVN-BSTCR-110-D-090-20-GT-210-LF
-
MPN:BSTCR-110-D-090-20-GT-210-LF
-
MFR:
-
Description:.100 Header

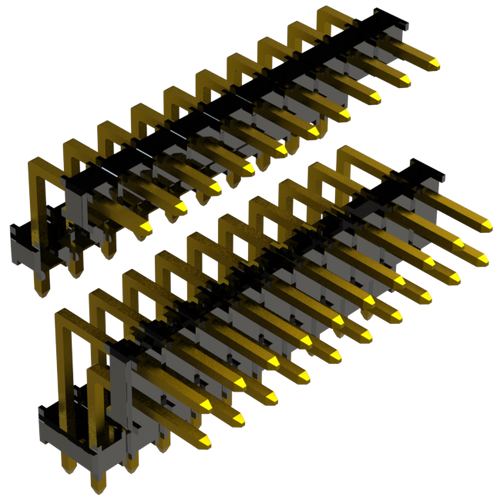

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Packaging Type: Bag
| Qty | Unit Price | Ext. Price |
|---|---|---|
| 64 | $0.99 | $0.99 |
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: .100 Header
- Manufacturer: Major League Electronics
- Length: 0 mm
- Series: BSTCR-1
- Product Status: Active
- Pitch: 0.100" (2.54mm)
- Mounting Type: Through Hole, Right Angle
- Color: Black
- Number of Positions: 20
- Number of Rows: 2
- Termination: Solder
- Row Spacing: 0.100" (2.54mm)
- Length - Overall Pin: -
- Length - Post (Mating): 0.290" (7.366mm)
- Length - Stack Height: 0.210" (5.334mm)
- Length - Tail: 0.090" (2.286mm)
- Contact Finish - Post (Mating): Gold
- Contact Finish Thickness - Post (Mating): 10.0µin (0.25µm)
-
- Datasheet: BRVN-BSTCR-110-D-090-20-GT-210-LF
