BZT52-B3_R1_00001

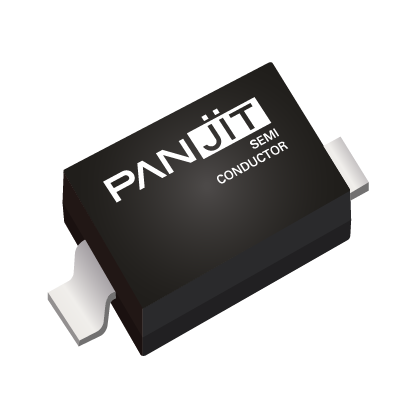

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: SURFACE MOUNT SILICON ZENER DIOD
- Manufacturer: PANJIT
- Length: 0 mm
- Series: ZSM-04
- Product Status: Active
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: SOD-123
- Supplier Device Package: SOD-123
- Power - Max: 410 mW
- Voltage - Zener (Nom) (Vz): 3 V
- Tolerance: ±2%
- Impedance (Max) (Zzt): 95 Ohms
- Current - Reverse Leakage @ Vr: 50 µA @ 1 V
- Voltage - Forward (Vf) (Max) @ If: 900 mV @ 10 mA
-
- Datasheet: BRVN-BZT52-B3_R1_00001
-
- ECCN: EAR99
- HTSUS: 8541109000
