BZX84C3V6TW_R1_00001

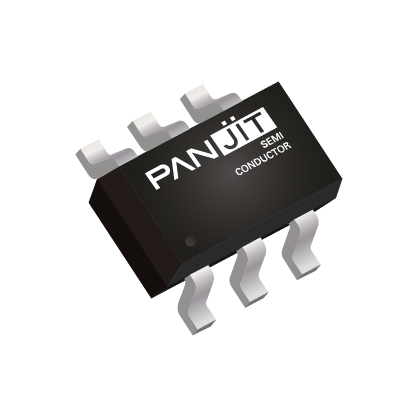

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: TRIPLE ISOLATED SURFACE MOUNT ZE
- Manufacturer: PANJIT
- Length: 0 mm
- Series: ZSM-02TS
- Product Status: Active
- Operating Temperature: -65°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 6-TSSOP, SC-88, SOT-363
- Supplier Device Package: SOT-363
- Power - Max: 200 mW
- Voltage - Zener (Nom) (Vz): 3.6 V
- Tolerance: ±5%
- Impedance (Max) (Zzt): 90 Ohms
- Current - Reverse Leakage @ Vr: 5 µA @ 1 V
- Configuration: 3 Independent
-
- Datasheet: BRVN-BZX84C3V6TW_R1_00001
-
- ECCN: EAR99
- HTSUS: 8541109000
