CS18-02P110-03-1X
-
BRVN:BRVN-CS18-02P110-03-1X
-
MPN:CS18-02P110-03-1X
-
MFR:
-

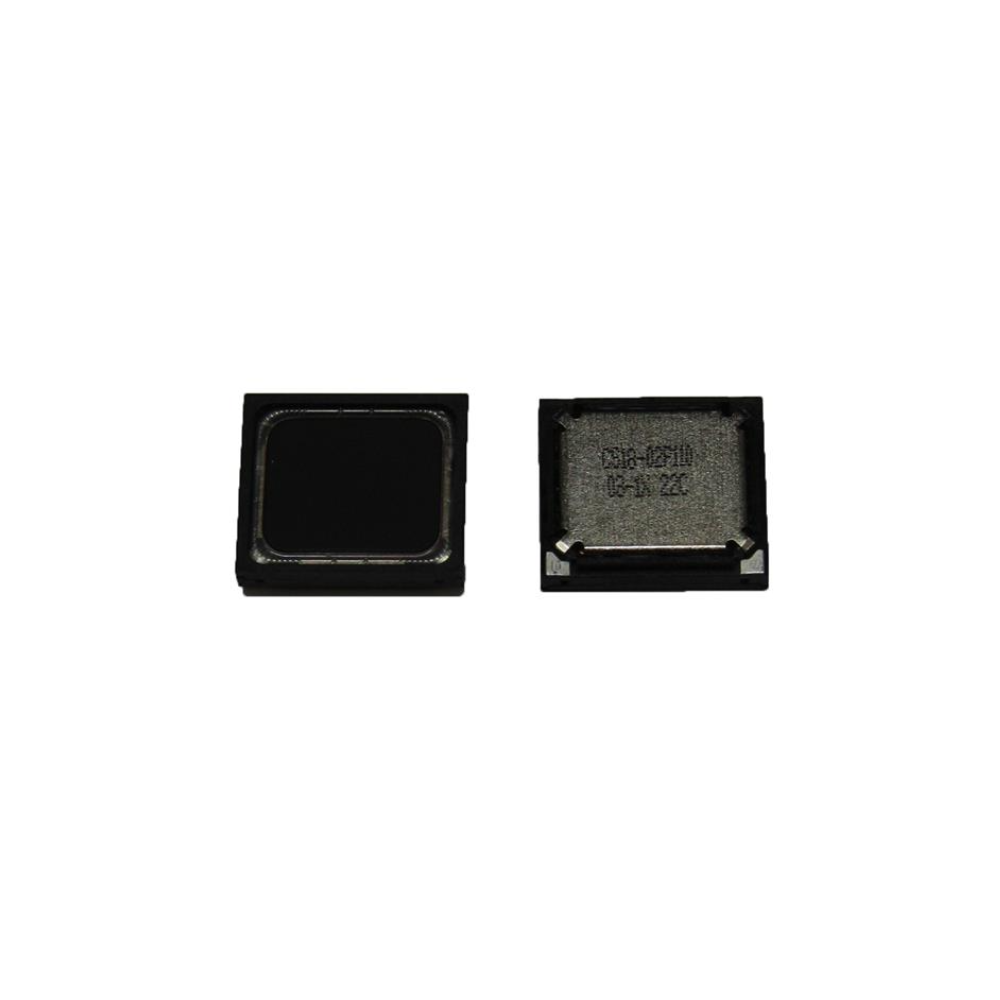

Description:SPEAKER IP67 4OHM 2W 104DB
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: SPEAKER IP67 4OHM 2W 104DB
- Unit of Measure: EA
- Manufacturer: Challenge Electronics
- Length: 0 mm
- Series: -
- Product Status: Active
- Technology: Magnetic
- Type: General Purpose
- Frequency Range: 1.1 kHz ~ 20 kHz
- Frequency Self Resonant: 1.1kHz
- Impedance: 4 Ohms
- Efficiency dBA: 104
- Efficiency Testing: 2W/100mm
- Efficiency Type: Sound Pressure Level (SPL)
- Power Rated: 2 W
- Power Max: 2.2 W
- Port Location: Top
- Shape: Rectangular
- Material Cone: Polyetheretherketone (PEEK)
- Material Magnet: Nd-Fe-B
- Ingress Protection: IP67 - Dust Tight, Waterproof
- Ratings: -
- Termination: Solder Pads
- Size Dimension: 0.709" L x 0.630" W (18.00mm x 16.00mm)
- Height Seated Max: 0.146" (3.70mm)
-
- Datasheet: BRVN-CS18-02P110-03-1X
