CSSH2728FT20L0

Datasheet
CSSH2728FT20L0

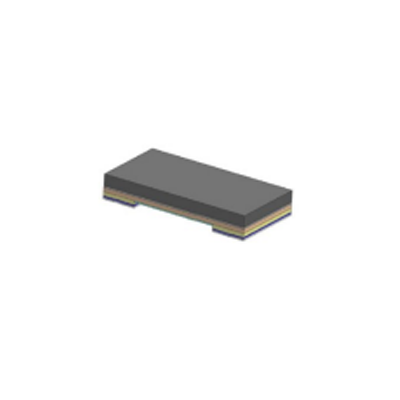

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.

  • Description: RES 0.02 OHM 1% 4W 2827 WIDE
  • Manufacturer: Stackpole Electronics, Inc.
  • Length: 0 mm
  • Series: CSSH
  • Product Status: Active
  • Operating Temperature: -55°C ~ 225°C
  • Features: Automotive AEC-Q200, Current Sense
  • Package / Case: Wide 2827 (7067 Metric), 2728
  • Supplier Device Package: 2728
  • Resistance: 20 mOhms
  • Tolerance: ±1%
  • Power (Watts): 4W
  • Composition: Metal Element
  • Temperature Coefficient: ±15ppm/°C
  • Size / Dimension: 0.264" L x 0.283" W (6.71mm x 7.19mm)
  • Height - Seated (Max): 0.055" (1.39mm)
  • Number of Terminations: 2
  • Failure Rate: -
  • Ratings: AEC-Q200
