CT08E-04S270-5
-
BRVN:BRVN-CT08E-04S270-5
-
MPN:CT08E-04S270-5
-
MFR:
-
Description:MAGNETIC XDCR 2.5-4.5V SMT

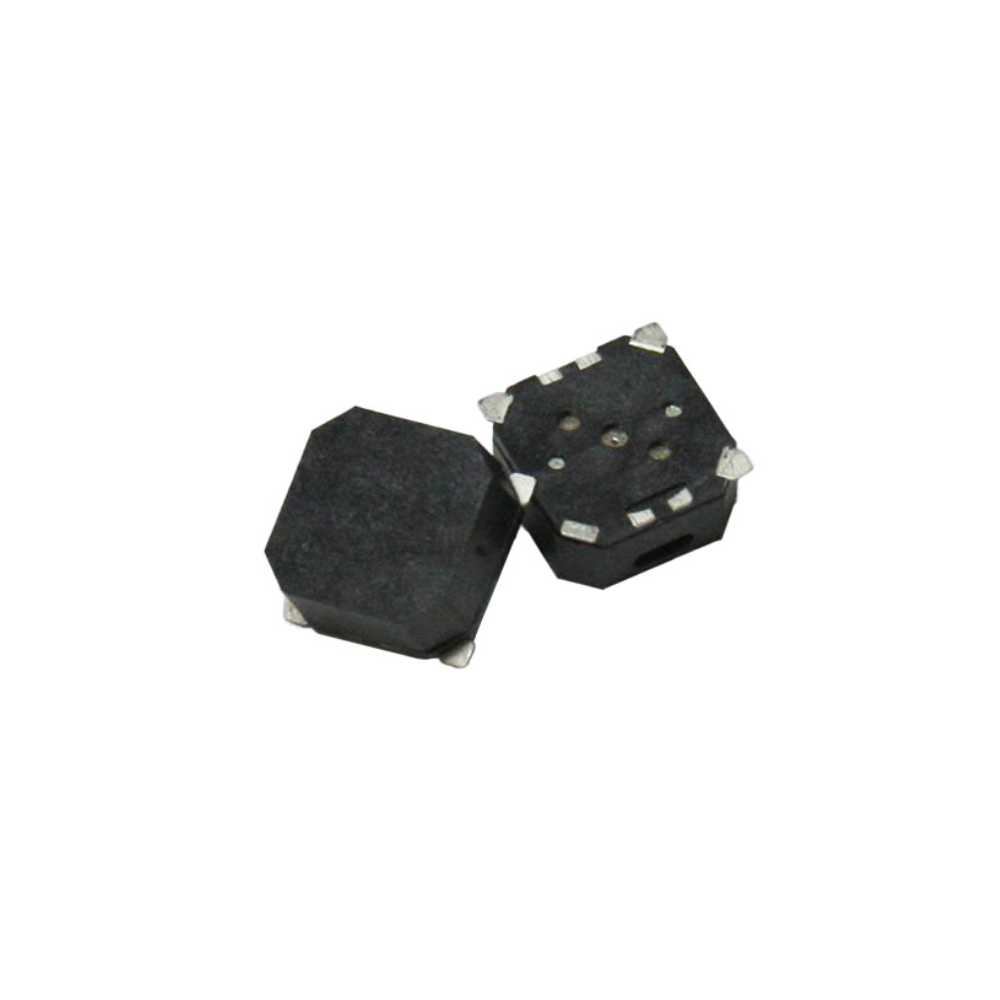

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: MAGNETIC XDCR 2.5-4.5V SMT
- Unit of Measure: EA
- Manufacturer: Challenge Electronics
- Length: 0 mm
- Series: -
- Product Status: Active
- Technology: Magnetic
- Port Location: Side
- Ingress Protection: -
- Ratings: -
- Termination: Solder Pads
- Size Dimension: 0.335" L x 0.335" W (8.50mm x 8.50mm)
- Height Seated Max: 0.165" (4.20mm)
- Frequency: 2.7kHz
- Operating Temperature: -30°C ~ 70°C
- Mounting Type: Surface Mount
- Driver Circuitry: Transducer, Externally Driven
- Input Type: Zero-Peak Signal
- Voltage Rated: 3.6 V
- Voltage Range: 2.5 ~ 4.5V
- Operating Mode: -
- Duration: -
- Sound Pressure Level SPL: 97dB @ 3.6V, 10cm
- Current Supply: 100mA
- Approval Agency: -
-
- Datasheet: BRVN-CT08E-04S270-5
