CT47001N022
-
BRVN:BRVN-CT47001N022
-
MPN:CT47001N022
-
MFR:
-
Description:SWITCH TOGGLE DPDT 10A 125V

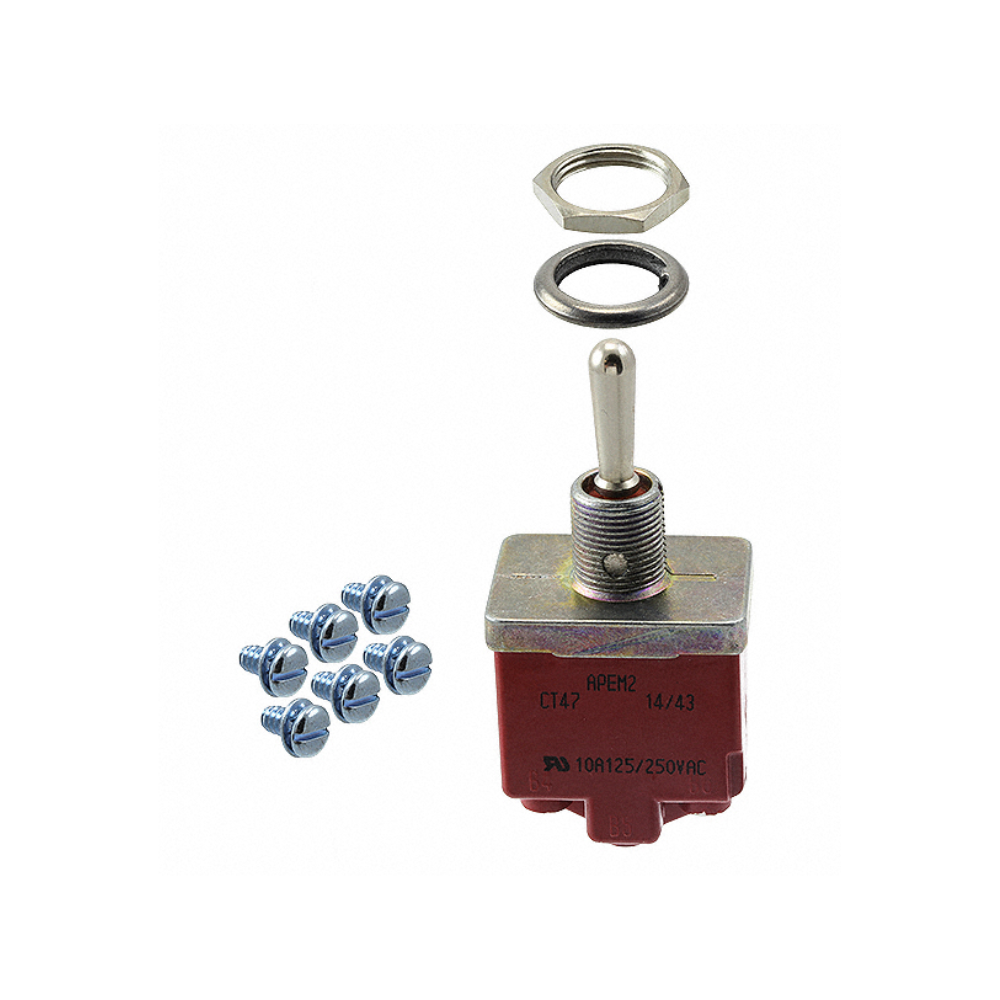

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: SWITCH TOGGLE DPDT 10A 125V
- Manufacturer: APEM
- Length: 0 mm
- Series: CT
- Product Status: Active
- Mounting Type: Panel Mount
- Circuit: DPDT
- Switch Function: Mom-Off-Mom
- Current Rating (Amps): 10A (AC), 15A (DC)
- Voltage Rating - AC: 125 V
- Voltage Rating - DC: 28 V
- Actuator Type: Standard Round
- Actuator Length: 17.50mm
- Illumination: Non-Illuminated
- Illumination Type, Color: -
- Illumination Voltage (Nominal): -
- Termination Style: Screw Terminal
- Panel Cutout Dimensions: Circular - 12.20mm Dia
- Bushing Thread: 15/32-32
- Ingress Protection: IP67 - Dust Tight, Waterproof
- Features: Sealed - Fully
- Operating Temperature: -40°C ~ 85°C
