CTL0402FWH1T-L

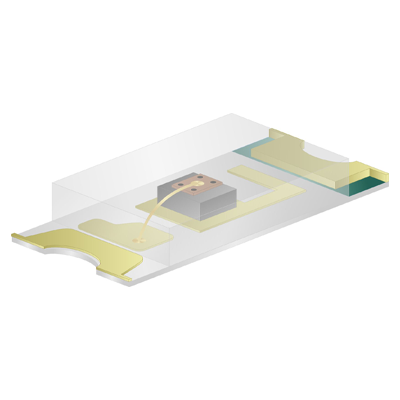

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: LED 0402 FLAT LENS WHITE LOW PRO
- Manufacturer: Venkel
- Length: 0 mm
- Series: CTL
- Product Status: Active
- Viewing Angle: 130°
- Mounting Type: Surface Mount
- Package / Case: 0402 (1005 Metric)
- Color: White
- Configuration: Standard
- Lens Color: Yellow
- Lens Transparency: Diffused
- Millicandela Rating: 140mcd
- Lens Style: Rectangle with Flat Top
- Lens Size: 1.00mm x 0.50mm
- Voltage - Forward (Vf) (Typ): 2.8V
- Current - Test: 20mA
- Wavelength - Dominant: -
- Wavelength - Peak: -
- Features: -
- Supplier Device Package: 0402 (1005 Metric)
- Size / Dimension: 1.00mm L x 0.50mm W
- Height (Max): 0.35mm
-
- Datasheet: BRVN-CTL0402FWH1T-L
