CTL1206FWH1T
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-

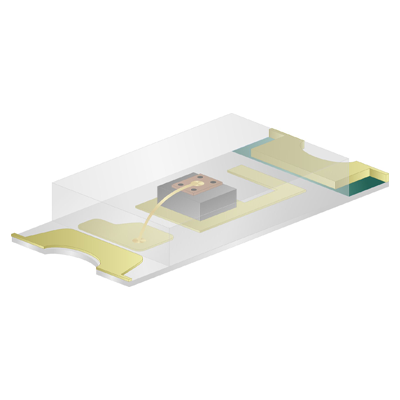

- Description: LED 1206 FLAT LENS WHITE
- Manufacturer: Venkel
- Length: 0 mm
- Series: CTL
- Product Status: Active
- Viewing Angle: 140°
- Mounting Type: Surface Mount
- Package / Case: 1206 (3216 Metric)
- Color: White
- Configuration: Standard
- Lens Color: Yellow
- Lens Transparency: Diffused
- Millicandela Rating: 600mcd
- Lens Style: Rectangle with Flat Top
- Lens Size: 2.00mm x 1.60mm
- Voltage - Forward (Vf) (Typ): 2.8V
- Current - Test: 20mA
- Wavelength - Dominant: -
- Wavelength - Peak: -
- Features: -
- Supplier Device Package: 1206 (3216 Metric)
- Size / Dimension: 3.20mm L x 1.60mm W
- Height (Max): 1.20mm
-
- Datasheet: BRVN-CTL1206FWH1T
