DZ23C10_R1_00001

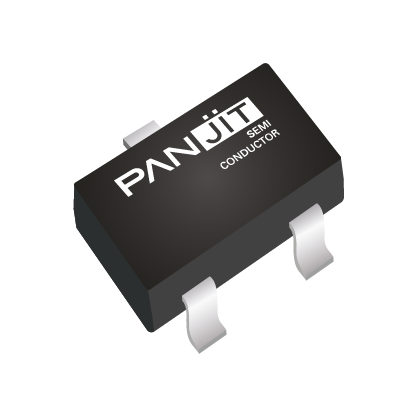

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: DUAL SURFACE MOUNT ZENER DIODES
- Manufacturer: PANJIT
- Length: 0 mm
- Series: ZSM-03TCC
- Product Status: Active
- Operating Temperature: -65°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: TO-236-3, SC-59, SOT-23-3
- Supplier Device Package: SOT-23
- Power - Max: 300 mW
- Voltage - Zener (Nom) (Vz): 10 V
- Tolerance: ±5%
- Impedance (Max) (Zzt): 15 Ohms
- Current - Reverse Leakage @ Vr: 100 nA @ 7500 V
- Configuration: 1 Pair Common Cathode
-
- Datasheet: BRVN-DZ23C10_R1_00001
-
- ECCN: EAR99
- HTSUS: 8541109000
