EF92251S1-1000U-A99

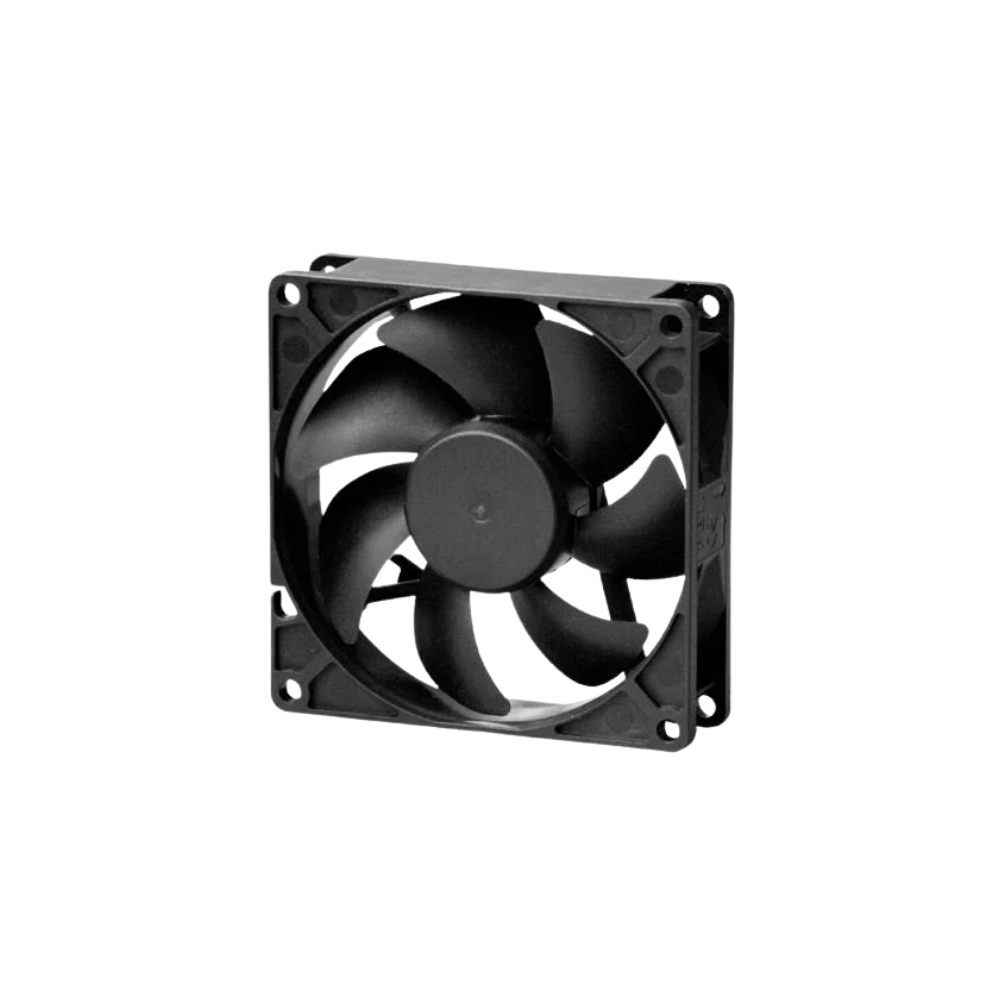

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: FAN AXIAL 92X25MM 12VDC WIRE
- Manufacturer: Sunon
- Length: 0 mm
- Series: EF
- Product Status: Active
- Operating Temperature: -
- Weight: 0.203 lb (92.08 g)
- Features: Auto Restart
- Width: 25.00mm
- Voltage - Rated: 12VDC
- Size / Dimension: Square - 92mm L x 92mm H
- Air Flow: 51.5 CFM (1.44m³/min)
- Static Pressure: 0.150 in H2O (37.3 Pa)
- Bearing Type: Sleeve
- Fan Type: Tubeaxial
- Noise: 34.0dB(A)
- Power (Watts): 1.68 W
- RPM: 3000 RPM
- Termination: 2 Wire Leads
- Ingress Protection: -
- Approval Agency: CE, CUR, TUV, UL
-
- Datasheet: BRVN-EF92251S1-1000U-A99
