ERB-RE1R25V

Datasheet
ERB-RE1R25V

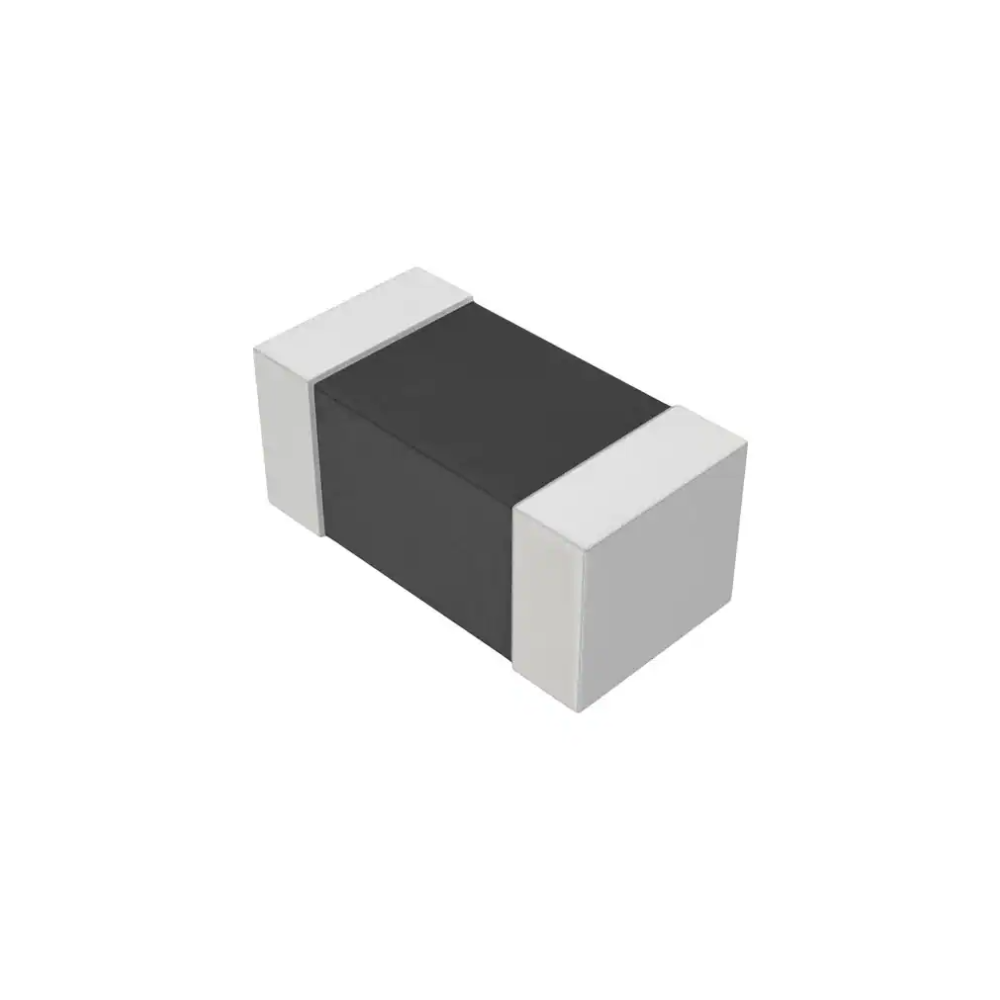

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.

  • Description: FUSE BOARD MNT 1.25A 32VDC 0603
  • Manufacturer: Panasonic Electronic Components
  • Length: 0 mm
  • Series: ERB-RE
  • Product Status: Active
  • Operating Temperature: -40°C ~ 125°C
  • Mounting Type: Surface Mount
  • Package / Case: 0603 (1608 Metric)
  • Current Rating (Amps): 1.25 A
  • Size / Dimension: 0.063" L x 0.032" W x 0.025" H (1.60mm x 0.81mm x 0.63mm)
  • Voltage Rating - AC: -
  • Voltage Rating - DC: 32 V
  • Approval Agency: cUL, UL
  • Color: -
  • Response Time: Fast Blow
  • Fuse Type: Board Mount (Cartridge Style Excluded)
  • Breaking Capacity @ Rated Voltage: 50A
