EXC-24CH900U
-
BRVN:BRVN-EXC-24CH900U
-
MPN:EXC-24CH900U
-
MFR:
-
Description:CMC 130MA 2LN 90 OHM SMD

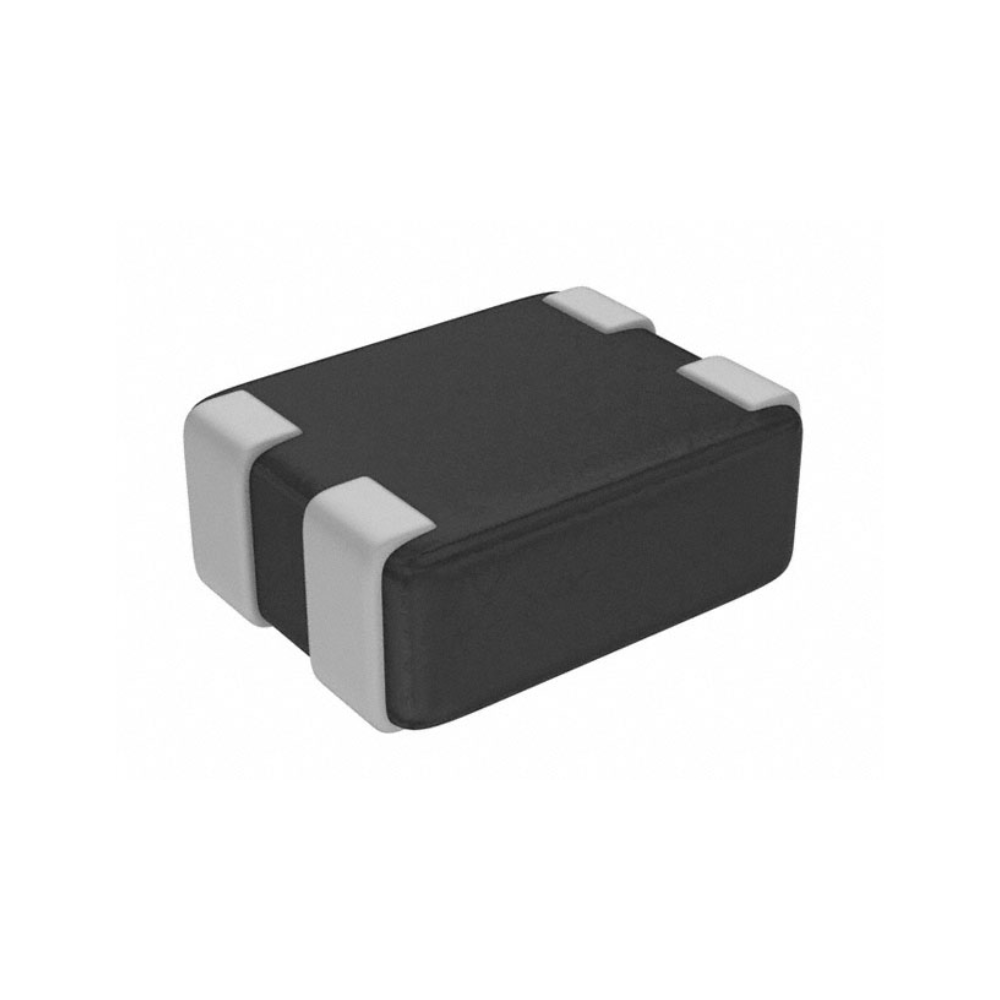

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: CMC 130MA 2LN 90 OHM SMD
- Manufacturer: Panasonic Electronic Components
- Length: 0 mm
- Series: EXC24
- Product Status: Active
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Surface Mount
- Package / Case: 0504 (1210 Metric)
- Features: -
- Size / Dimension: 0.049" L x 0.039" W (1.25mm x 1.00mm)
- Voltage Rating - AC: -
- Voltage Rating - DC: 5V
- Approval Agency: -
- Ratings: -
- Number of Lines: 2
- Height (Max): 0.024" (0.60mm)
- Filter Type: Signal Line
- Impedance @ Frequency: 90 Ohms @ 100 MHz
- Current Rating (Max): 130mA
- DC Resistance (DCR) (Max): 2.5Ohm
- Inductance @ Frequency: -
-
- Datasheet: BRVN-EXC-24CH900U
