F-114X

  • BRVN:
    BRVN-F-114X
  • MPN:
    F-114X
  • MFR:
  • Description:
    PWR XFMR LAMINATED 8.4VA CHAS MT
Datasheet
F-114X

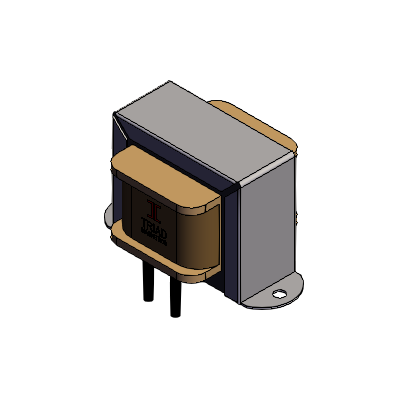

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.

  • Description: PWR XFMR LAMINATED 8.4VA CHAS MT
  • Manufacturer: Triad Magnetics
  • Length: 0 mm
  • Series: Single Secondary
  • Product Status: Active
  • Mounting Type: Chassis Mount
  • Type: Laminated Core
  • Size / Dimension: 71.42mm L x 41.28mm W
  • Height - Seated (Max): 41.28mm
  • Voltage - Primary: 115V
  • Voltage - Secondary (Full Load): 12V
  • Current - Output (Max): 700mA
  • Primary Winding(s): Single
  • Secondary Winding(s): Single
  • Center Tap: No
  • Power - Max: 8.4VA
  • Termination Style: Wire Leads
  • Voltage - Isolation: 1500Vrms
  • Weight: 0.8 lb (362.87 g)
