FCA-3A
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Packaging Type: Bulk
| Qty | Unit Price | Ext. Price |
|---|---|---|
| 1 | $0.69 | $0.69 |
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-

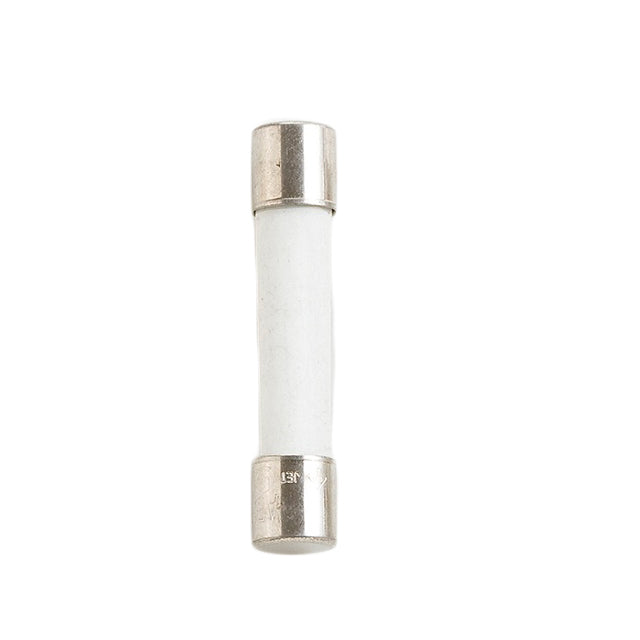

- Description: CERAMIC FUSE-6.3X32MM, FAST 3A
- Manufacturer: OptiFuse
- Length: 0 mm
- Series: FCA
- Product Status: Active
- Voltage Rating - AC: 250 V
- Current Rating (Amps): 3:00 AM
- Approval Agency: cULus, KTL, PSE/JET
- Package / Case: 3AB, 3AG, 1/4" x 1-1/4"
- Operating Temperature: -
- Mounting Type: Requires Holder
- Size / Dimension: 0.250" Dia x 1.252" L (6.35mm x 31.80mm)
- Fuse Type: Cartridge, Ceramic
- Voltage Rating - DC: -
- Response Time: Fast Blow
- Breaking Capacity @ Rated Voltage: 100A
- Melting I²t: 8.085
- Color: -
-
- Datasheet: BRVN-FCA-3A
